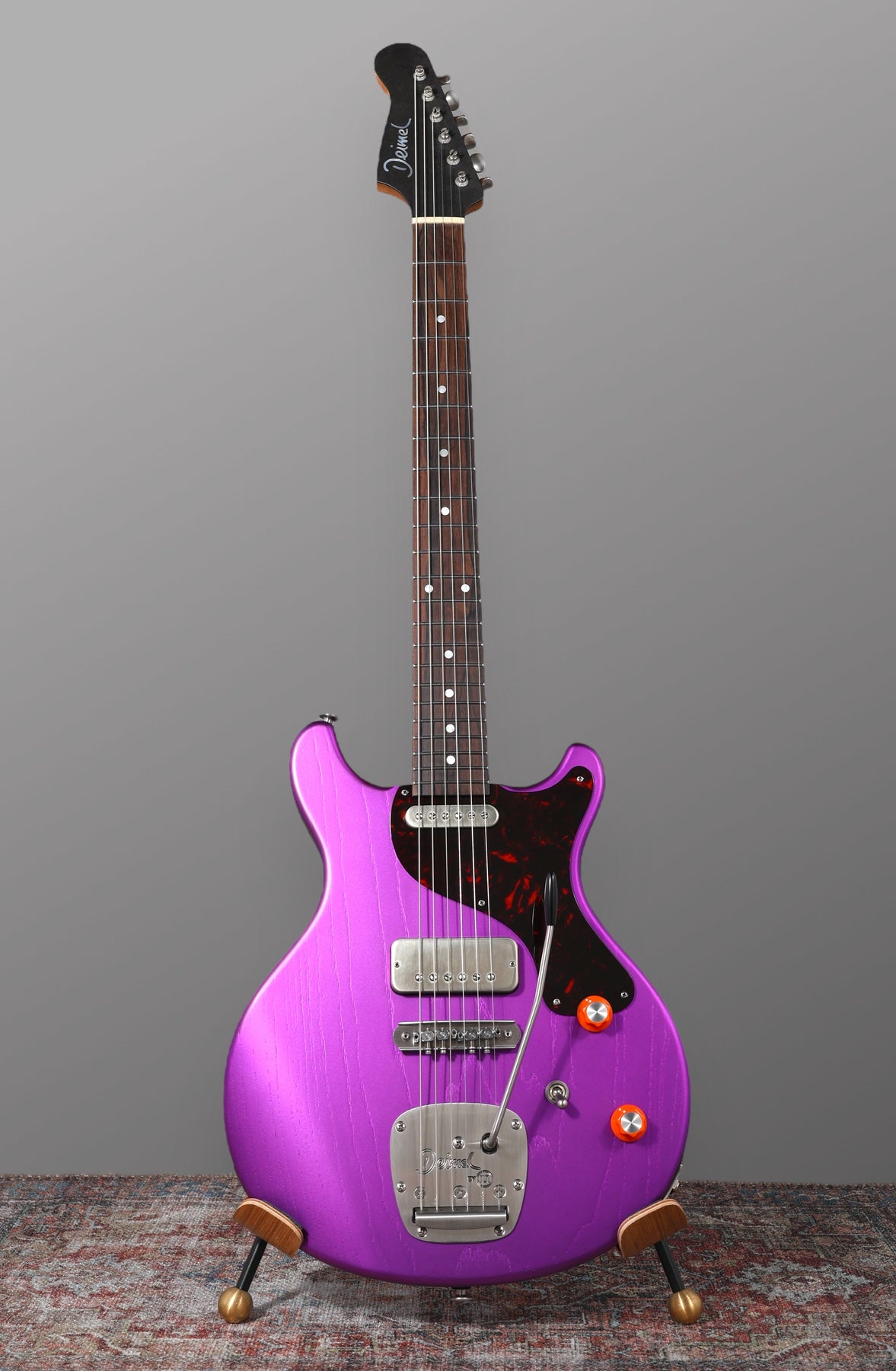

Introducing the Deimel Doublestar RawTone. An exquisite and versatile inspiration machine; distinguished as the first in its series to feature a Mastery bridge and vibrato. This example is also the first to feature the classic Deimel reversed 6 - in - row headstock.
The Deimel Doublestar RawTone marries meticulous craftsmanship with innovative features, creating a unique Double-Cut guitar that stands out both tonally and aesthetically; while also being a very solidly constructed instrument, that can withstand heavy play or life on the road.
The pickups are hand wound by Deimel in Germany. This set is comprised of a medium output PAF under Thunderbird cover in the bridge position and a Strat sized P-90 neck pickup. Frank Deimel’s pickups are absolutely phenomenal; his winding skills are certainly up there with the best. You’ll be hard pressed to find a genre of music this guitar doesn’t excel in. You'll also find that coming up with new and interesting ideas is quite easy with this unique LP Jr. / Jazzmaster - like hybrid design.
Whether you’re a collector or a musician seeking a versatile and high-quality guitar, this Doublestar RawTone promises to deliver.

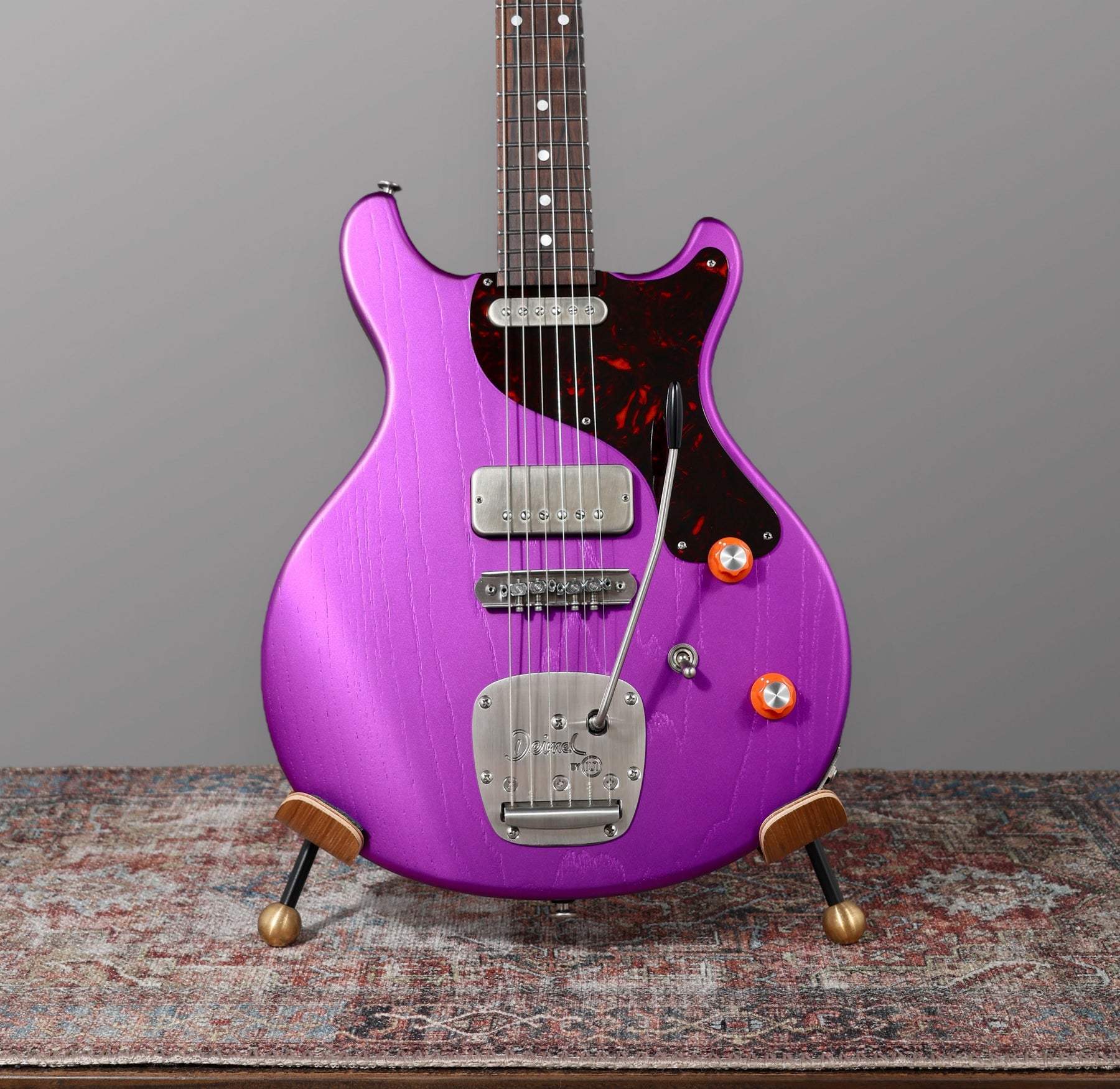

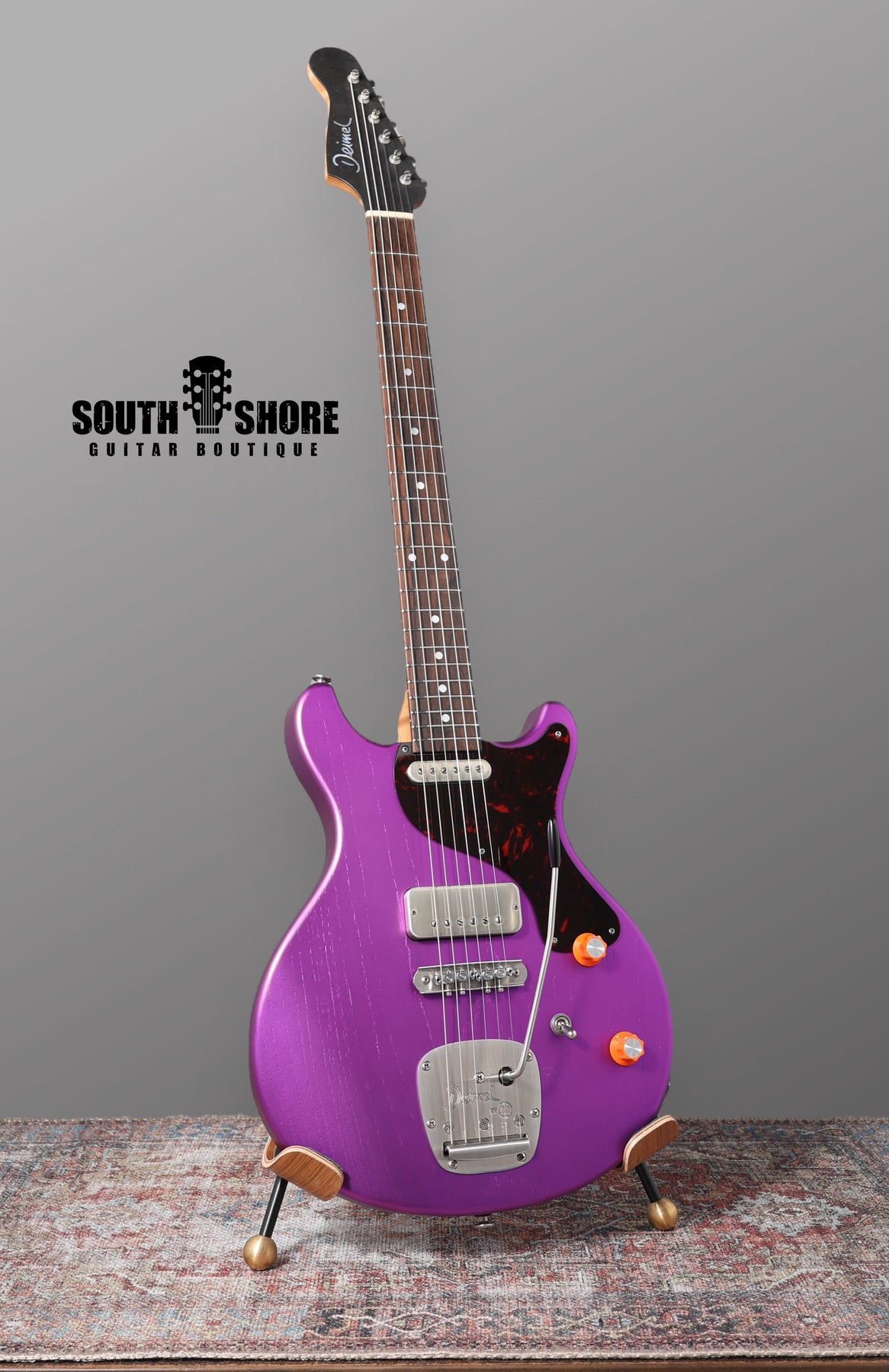

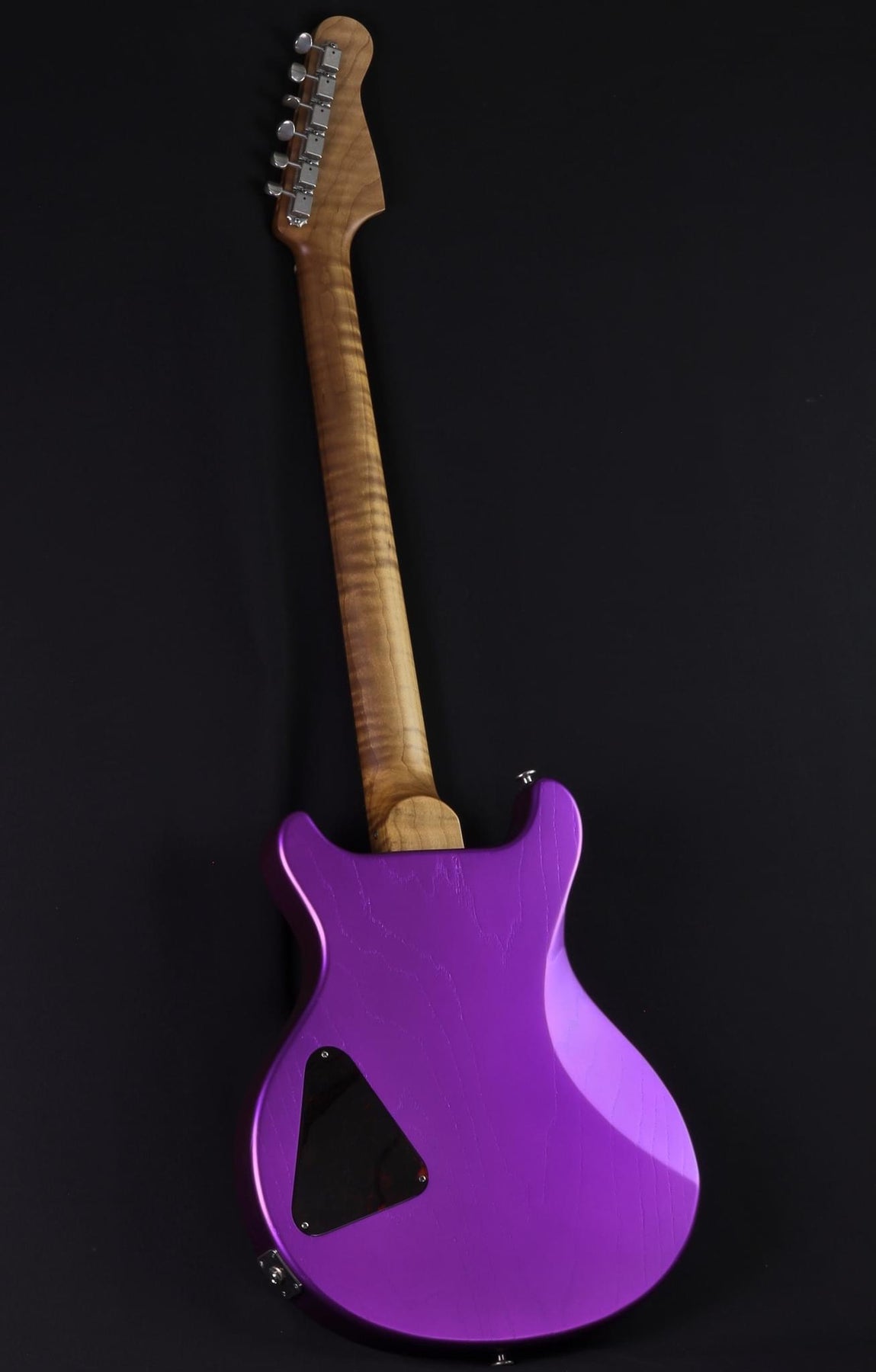

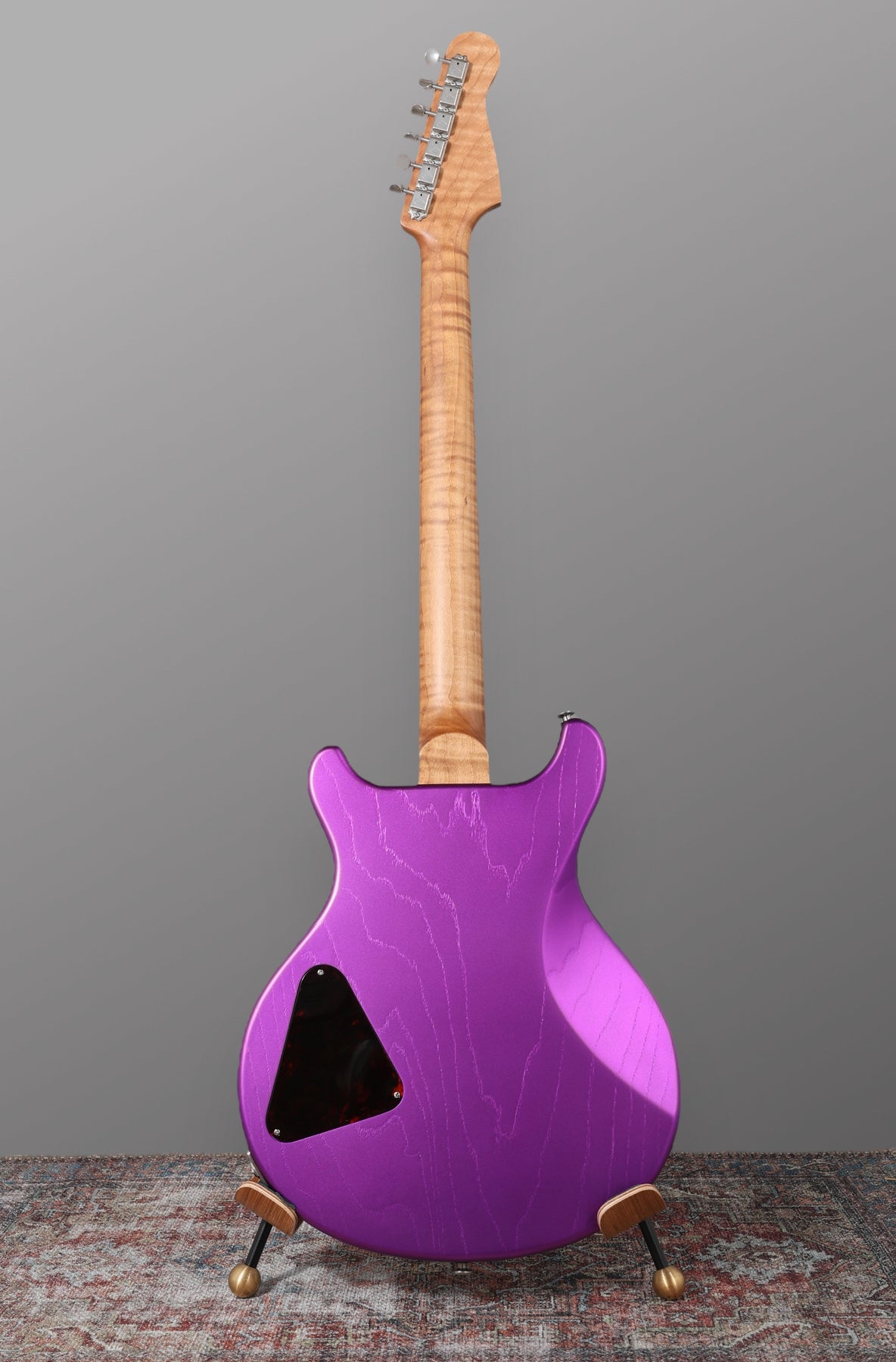

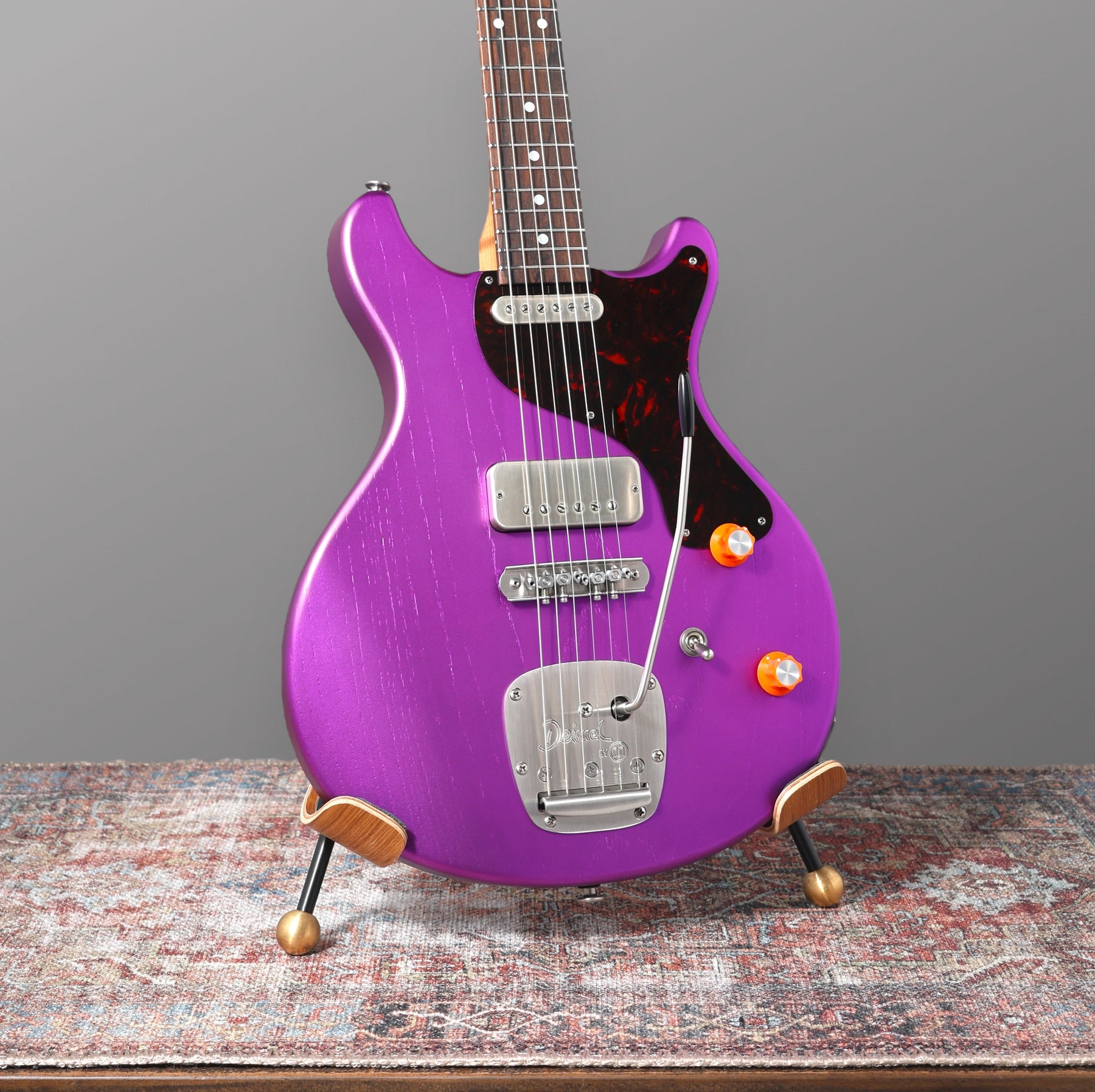

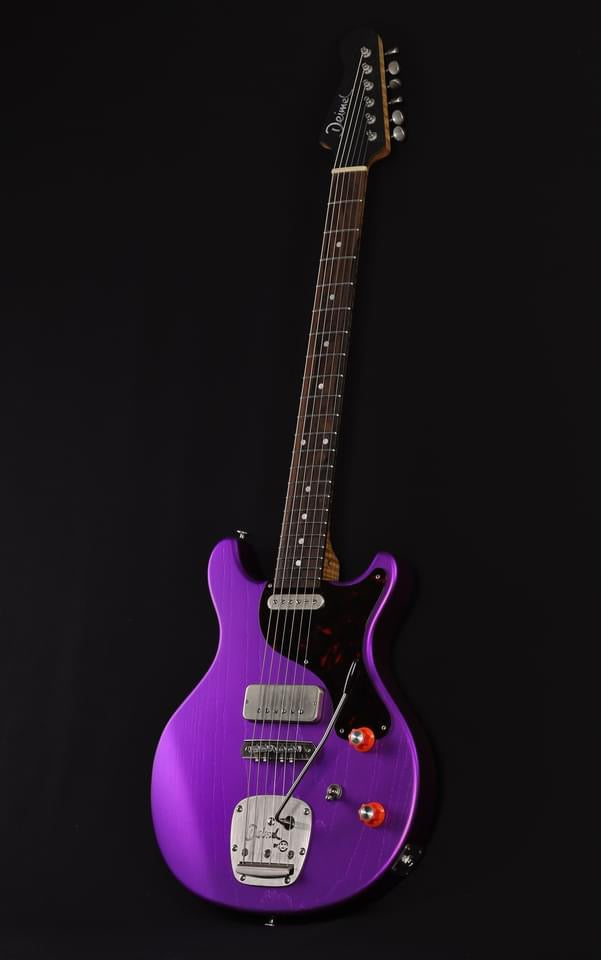

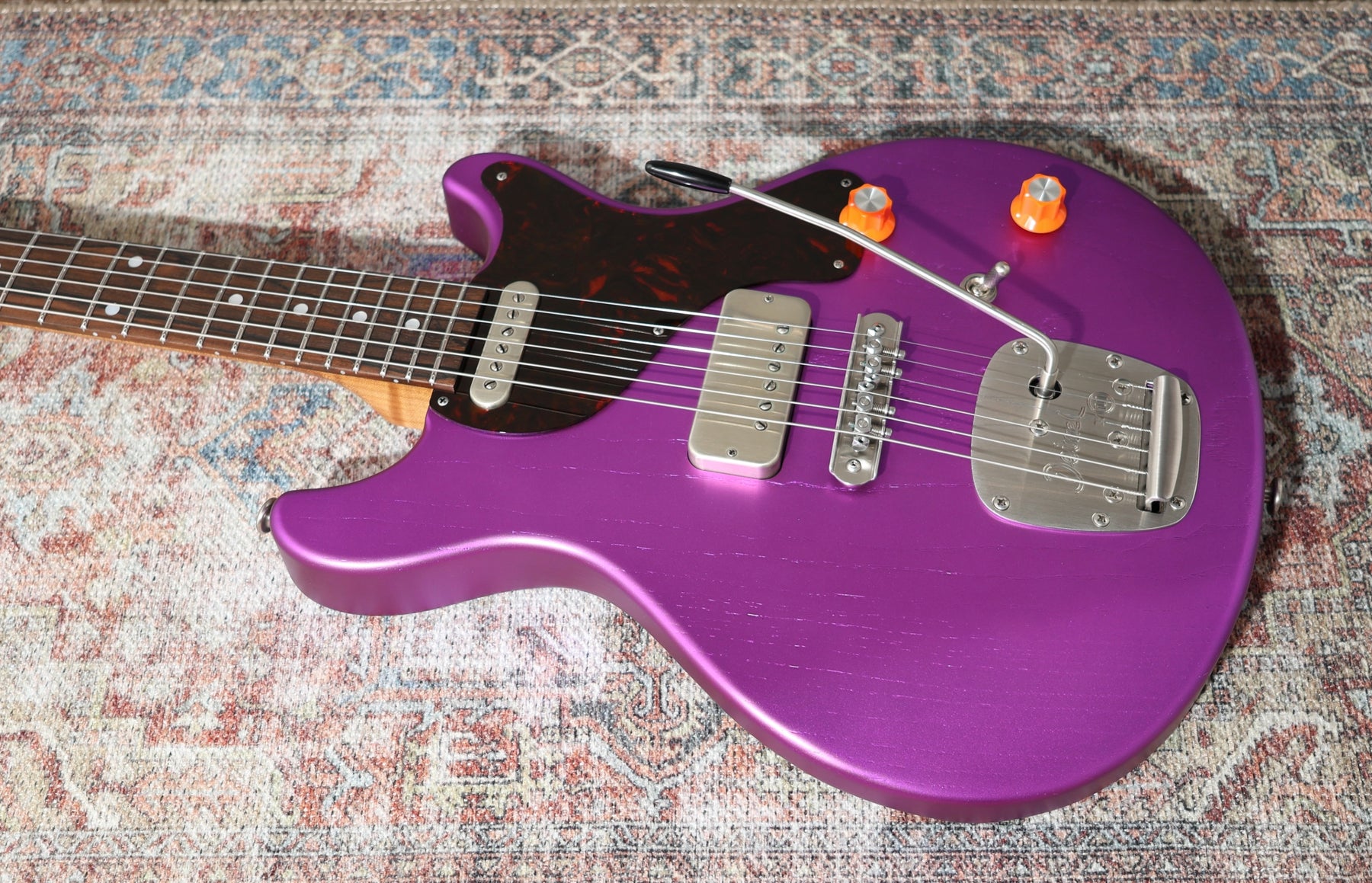

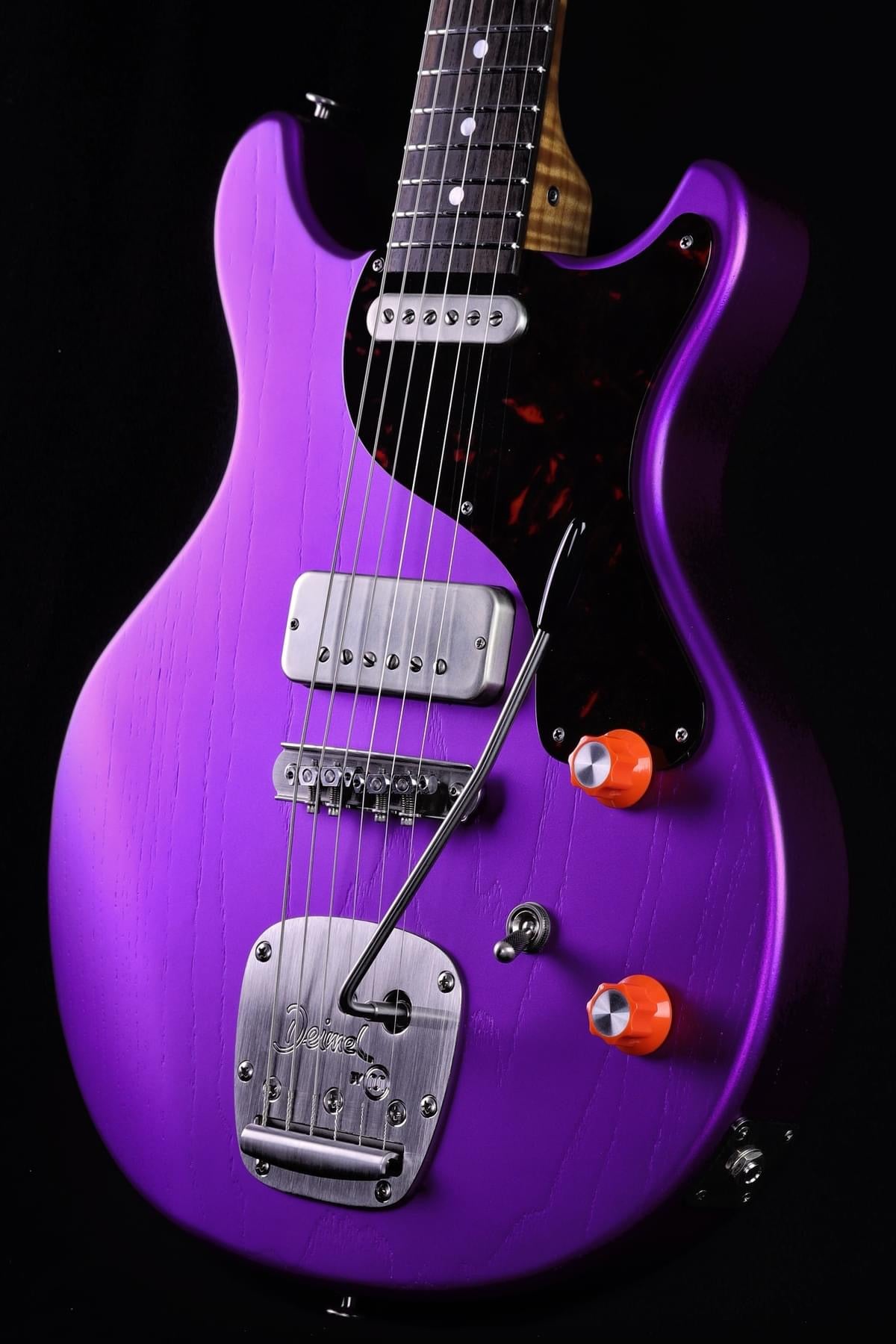

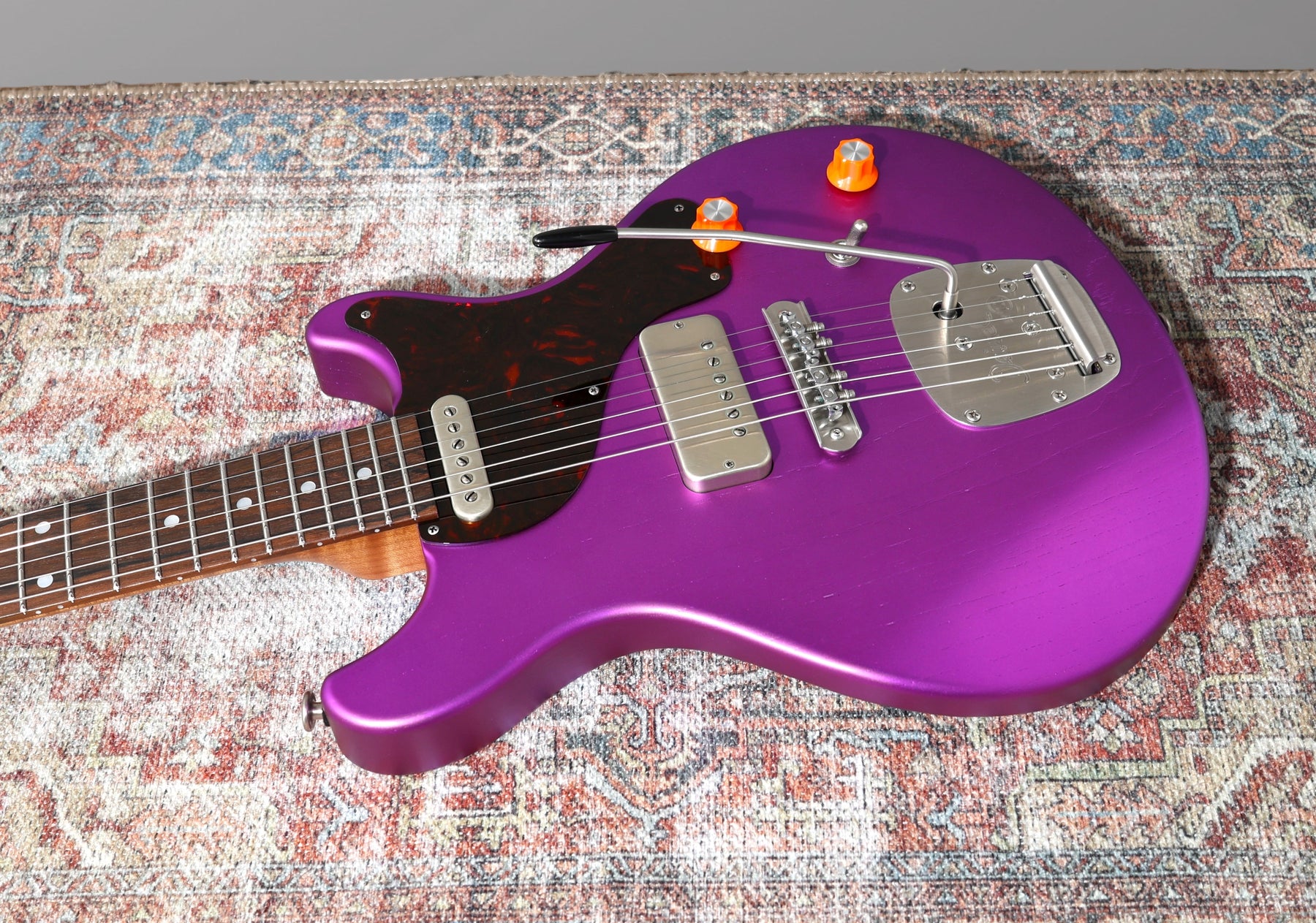

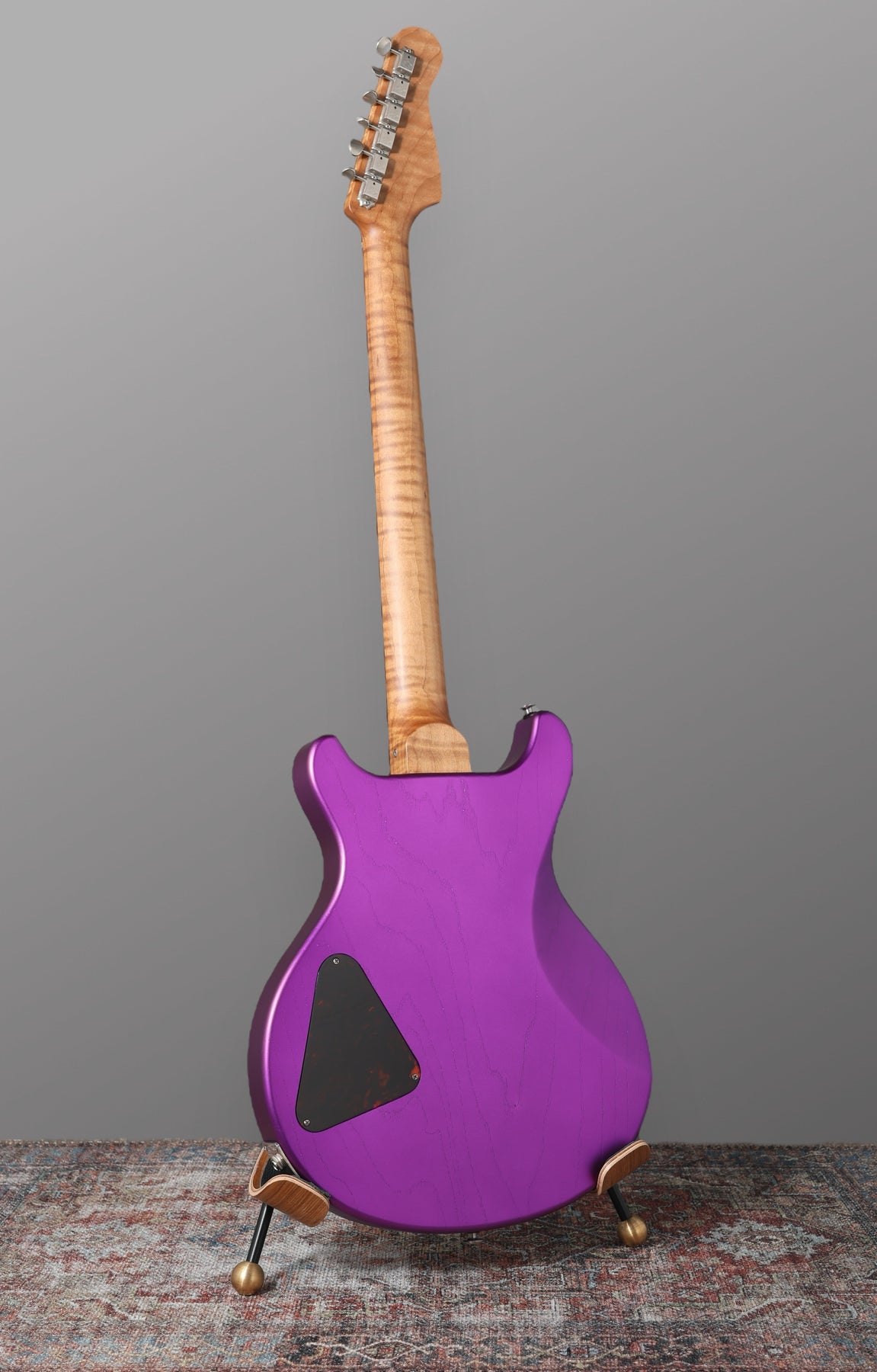

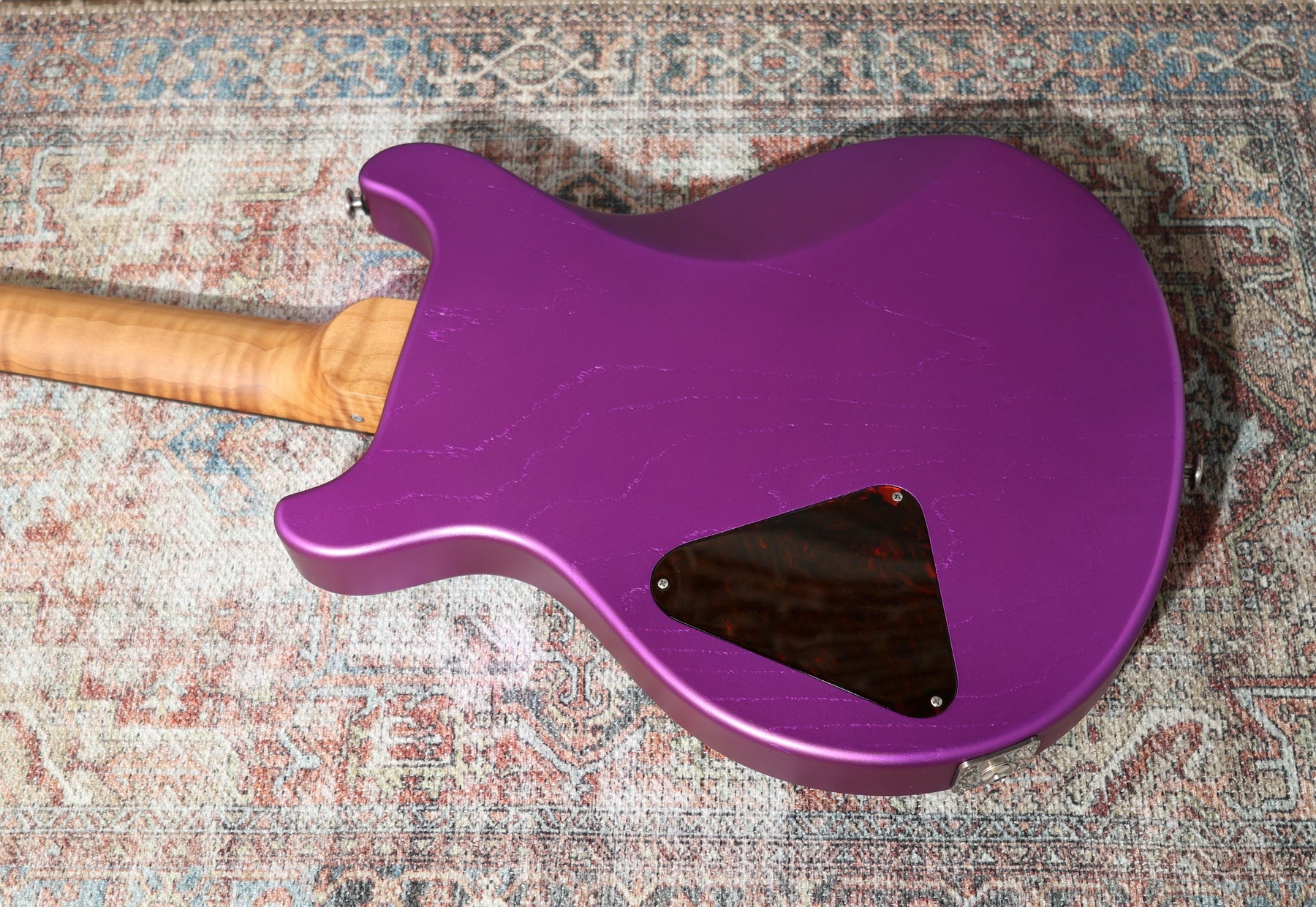

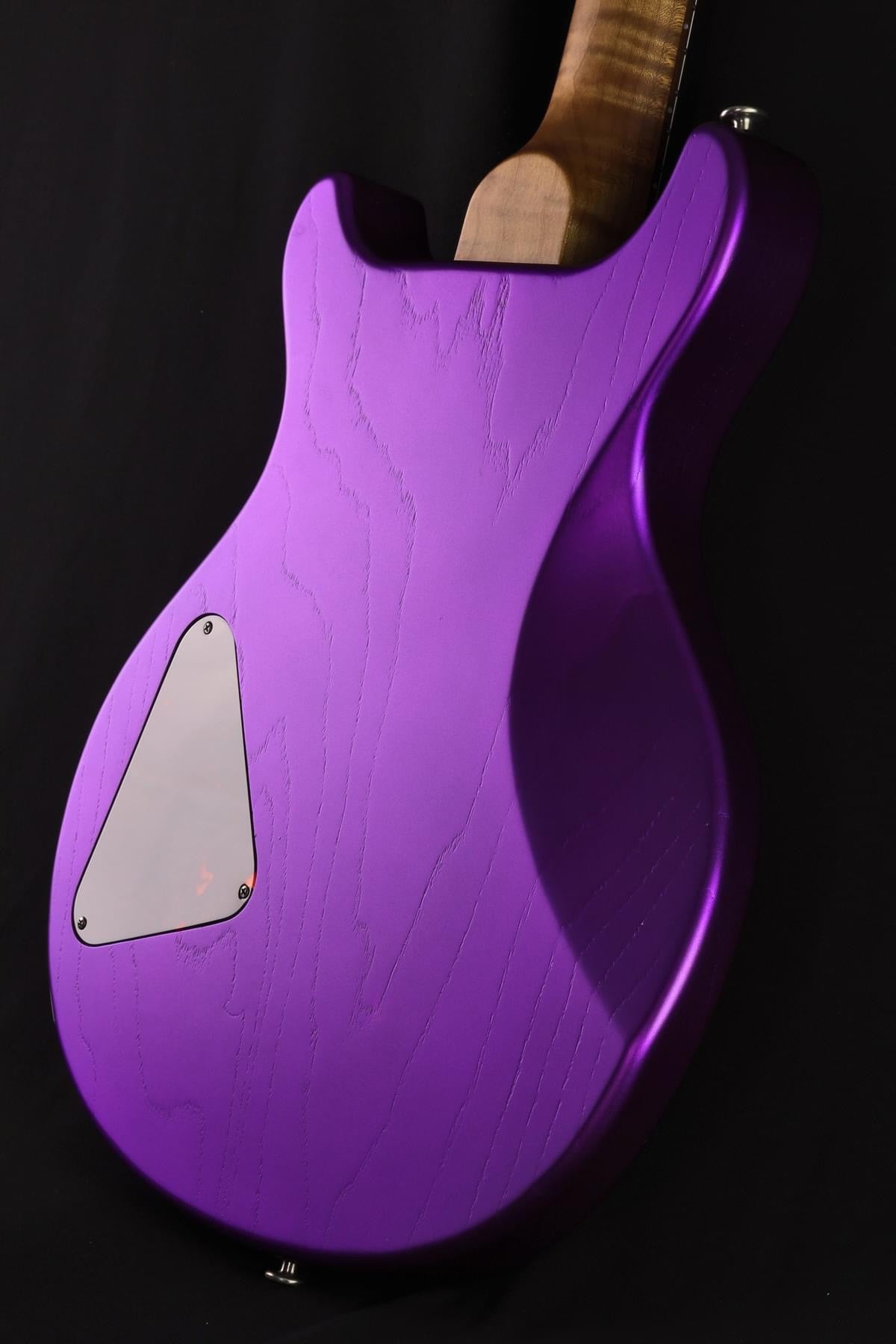

The bodies finish is meant to change color in different lighting. You’ll see lighter shades of purple when the suns out (first group of photos) Or darker shades if the guitar is in a darker room. (last few photos w/ black background)
Specifications:
Type: “RawTone”, glued-in neck
Body: One-piece Swamp Ash with thermo treatment
Neck: Highly figured maple with thermo treatment
Fretboard: Ziricote
Neck Finish: Transparent matte lacquer
Neck Shape: Medium fat 59 JM (Med-Large C) .86”-.98”

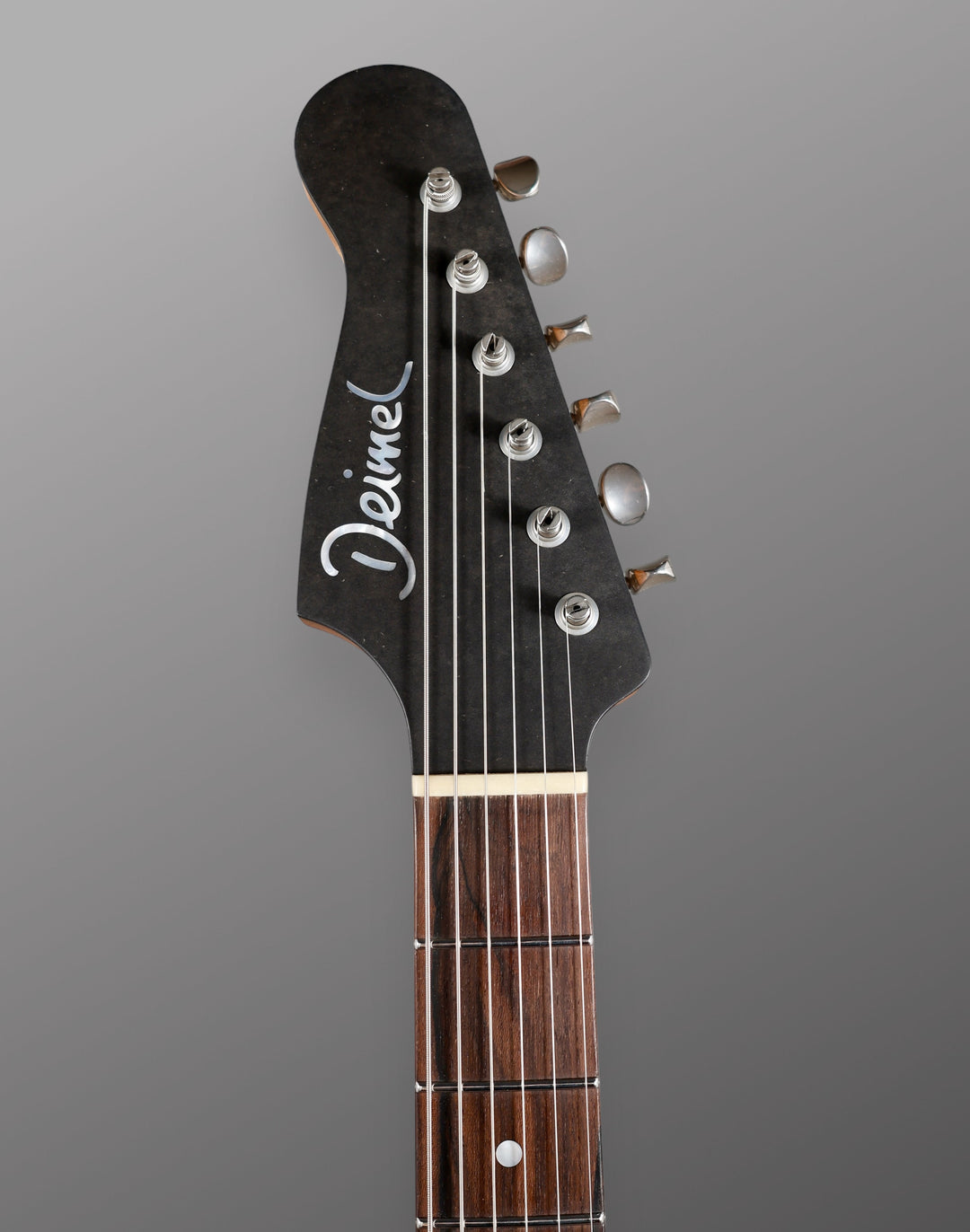

Headstock: Black fiber with pearl logo inlay, reversed 6-in-row

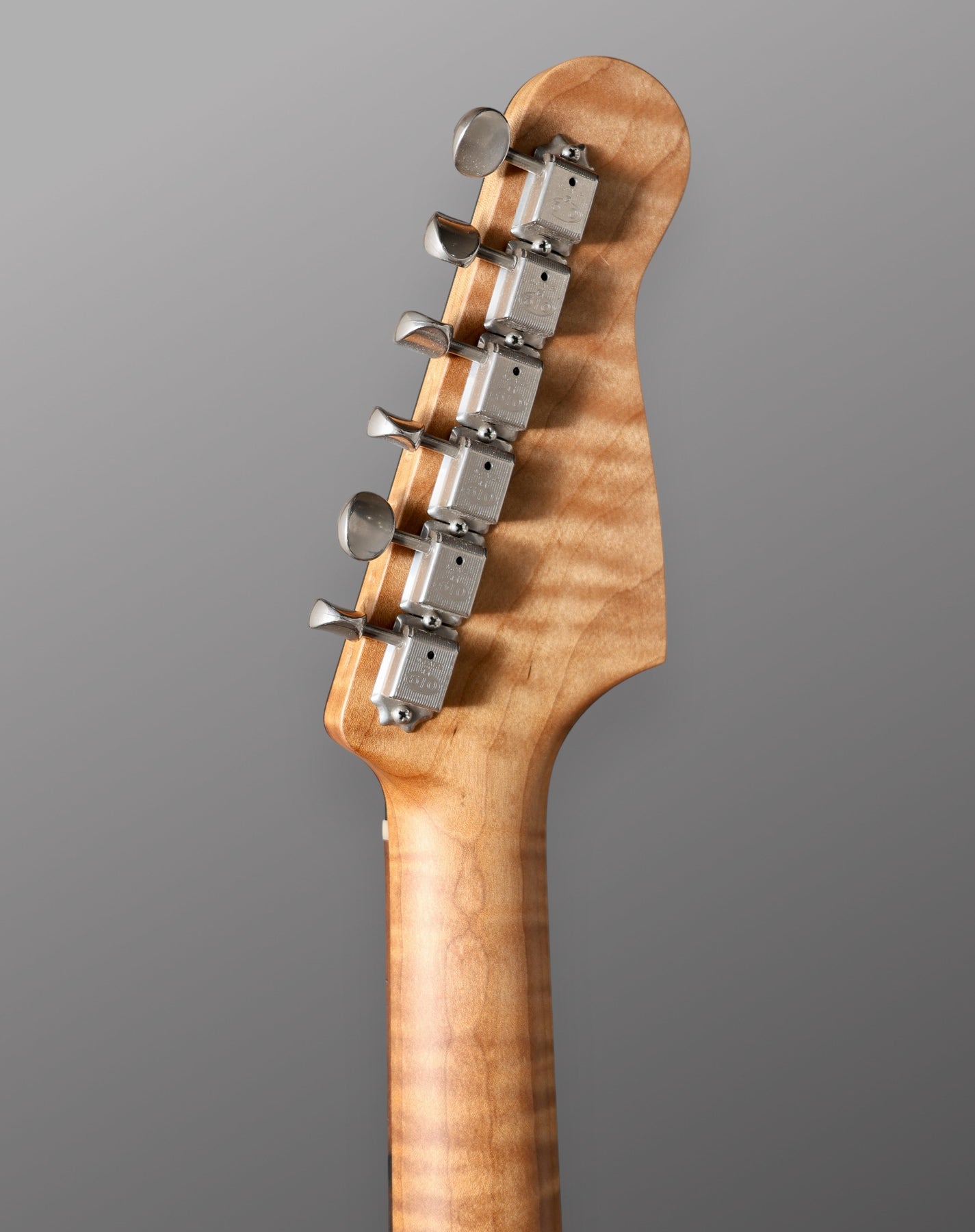

Tuners: Gotoh SD510 R-XN
Scale Length: 25.5"
Fingerboard radius: Compound 9.5" - 12"
Truss rod adjustment: Gotoh Side Adjuster + Butt-end (Fender style) which would require pickguard removal. Side neck truss rod adjustment is not only for incremental adjustments. This is an advanced vintage-style, single action truss rod system that works just the same as the butt-end adjustment mechanism
Inlays: Mother of peal
Frets: 22, Wagner CuNiFlex 9665
Saddle Width: 1 11/16” (42.8625 m
Nut: Unbleached bone 1 11/16”
Glue: Polyurethane
Pickguard: Tortoise, 1-ply

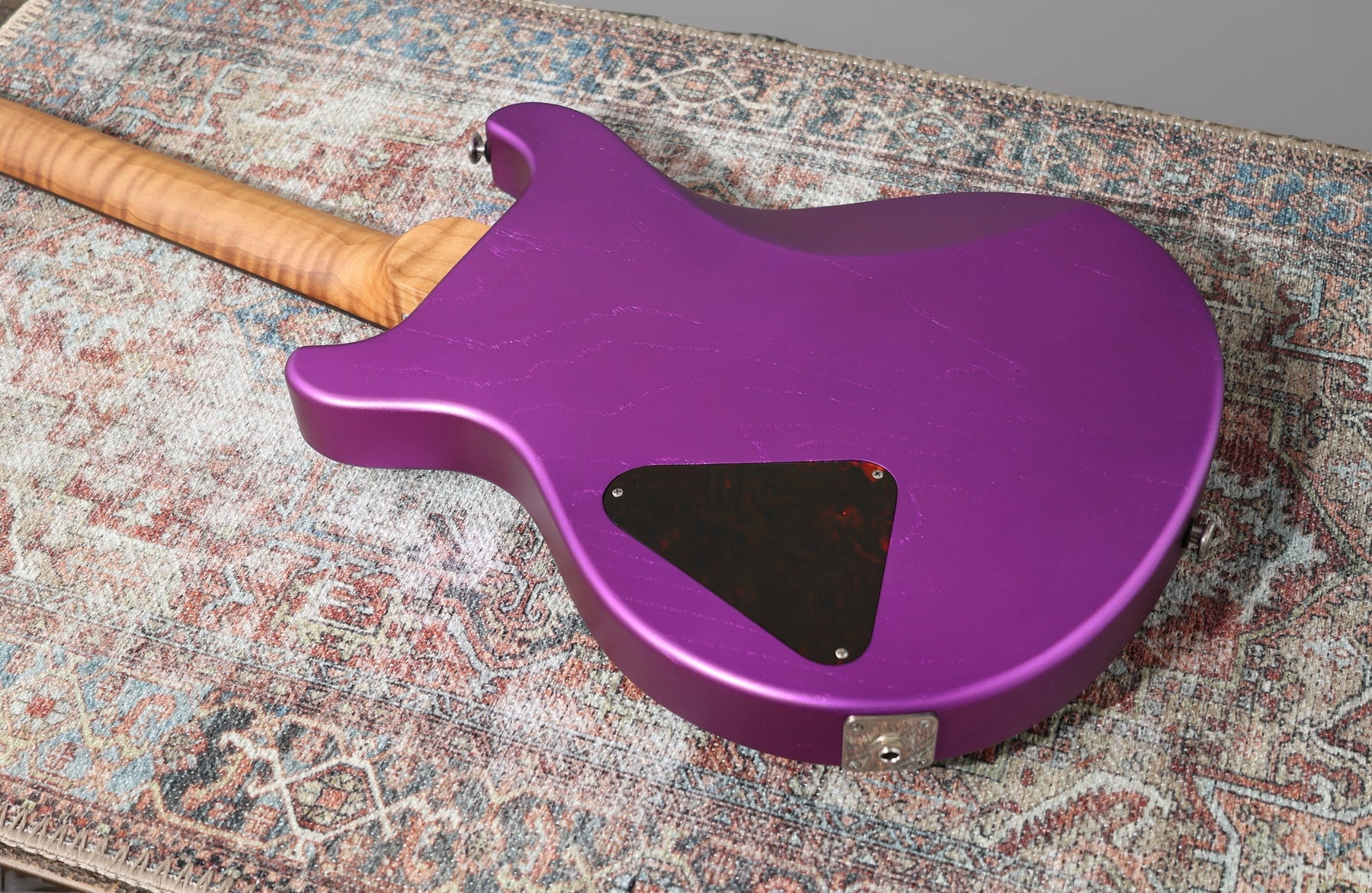

Backplates: Tortoise, 1-ply
Color: Purple Candy Metallic, matte

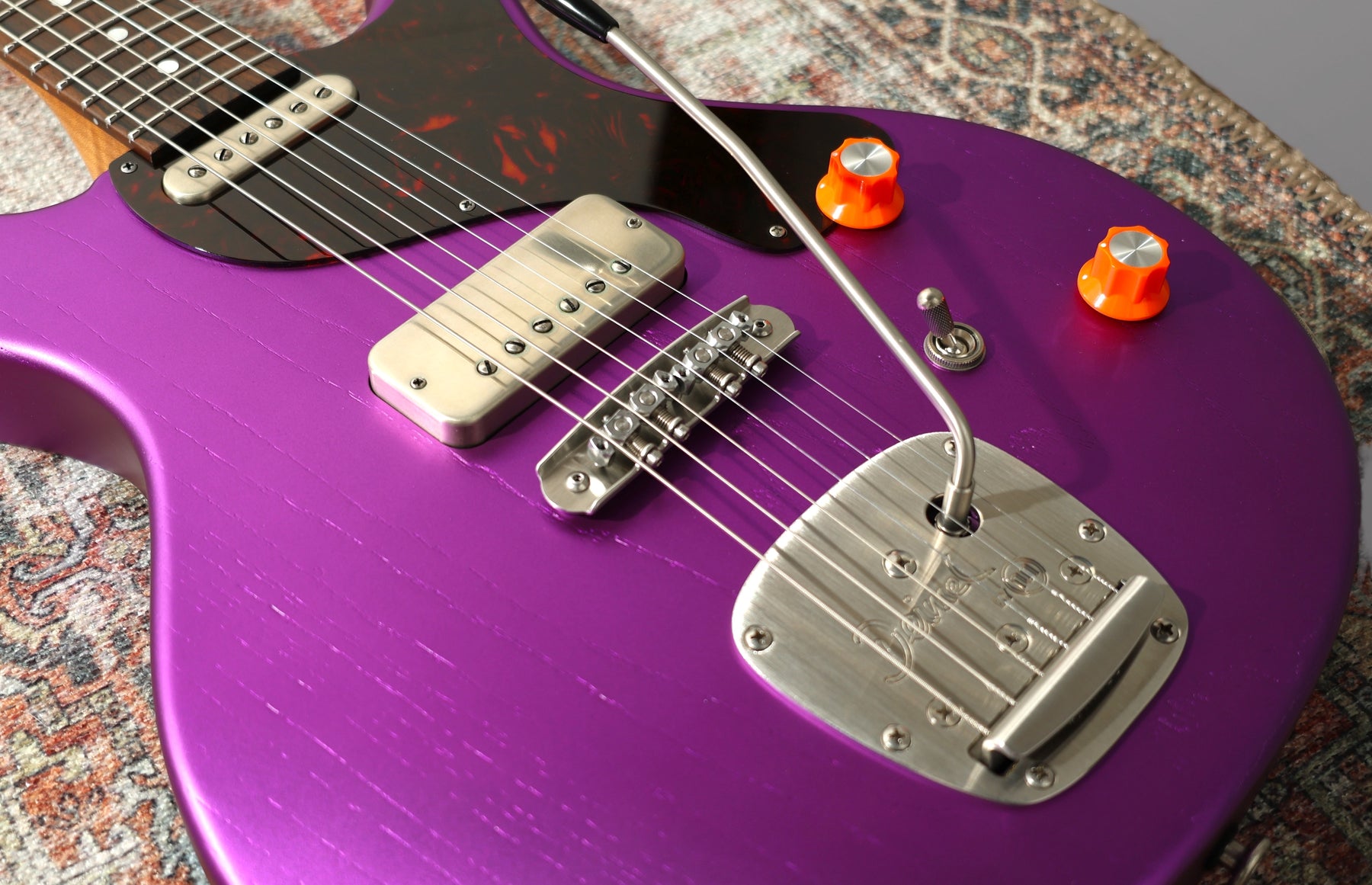

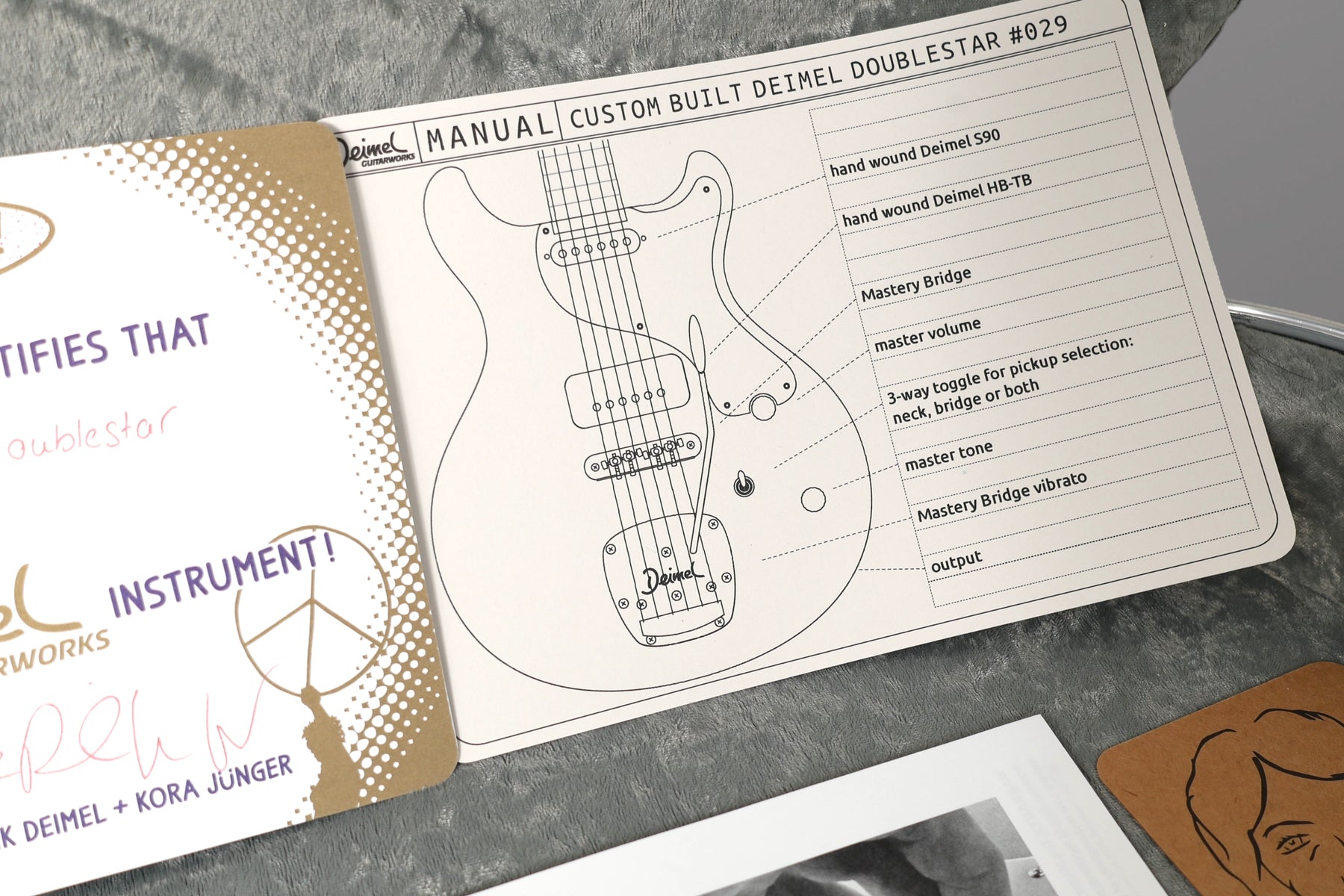

Pickups
Neck: Hand-wound Deimel S90, raw nickel
Bridge: Hand-wound Deimel HB-TB, raw nickel
Bridge: Mastery Bridge

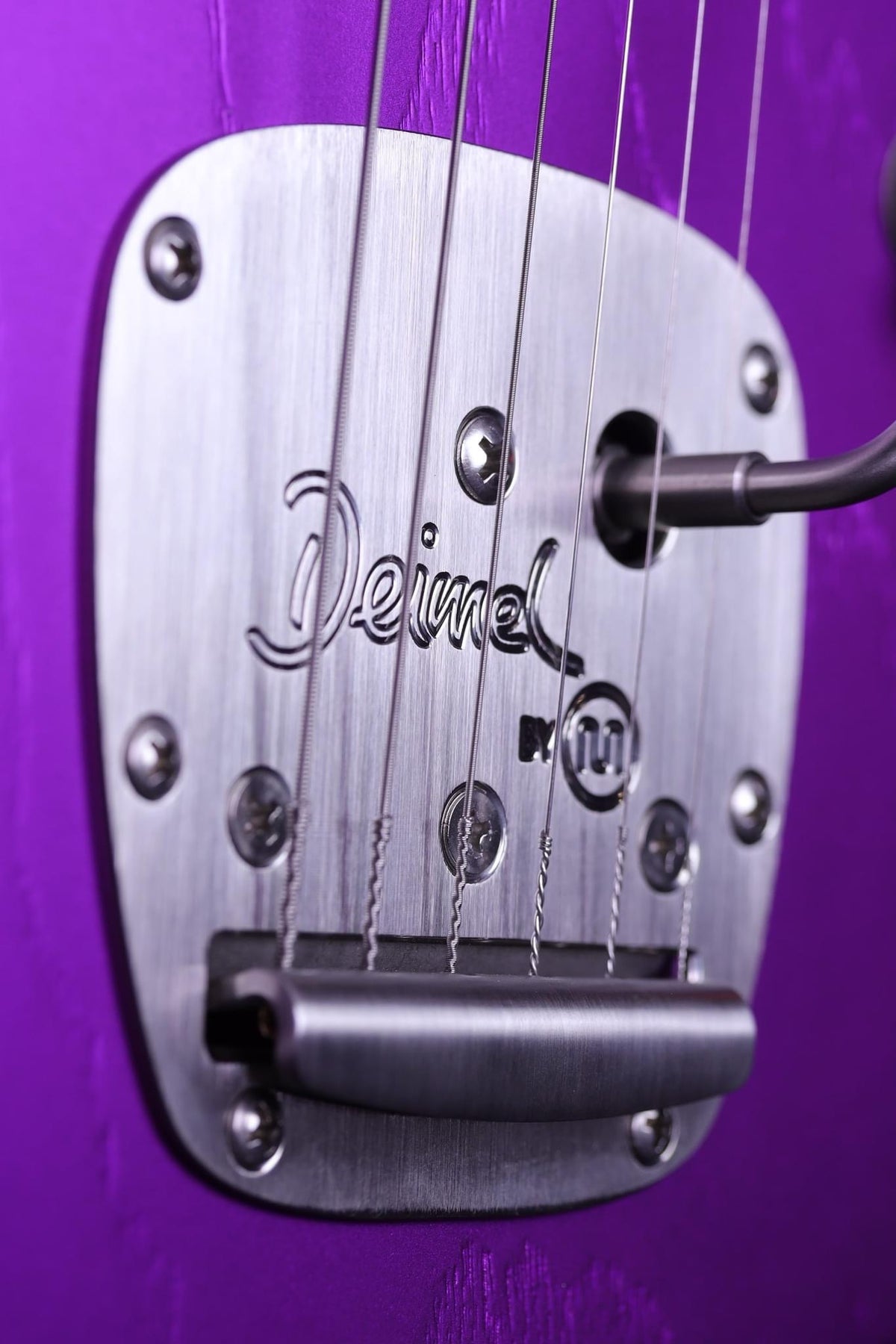

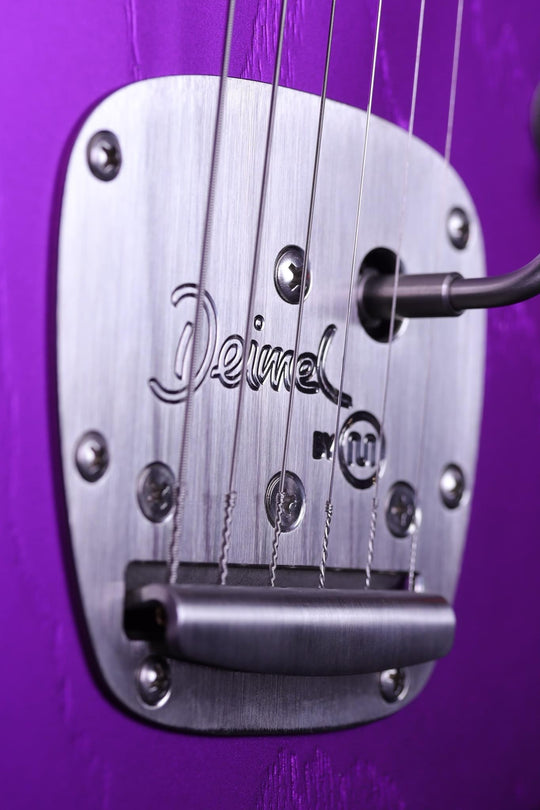

Vibrato: Mastery Deimel MV vibrato

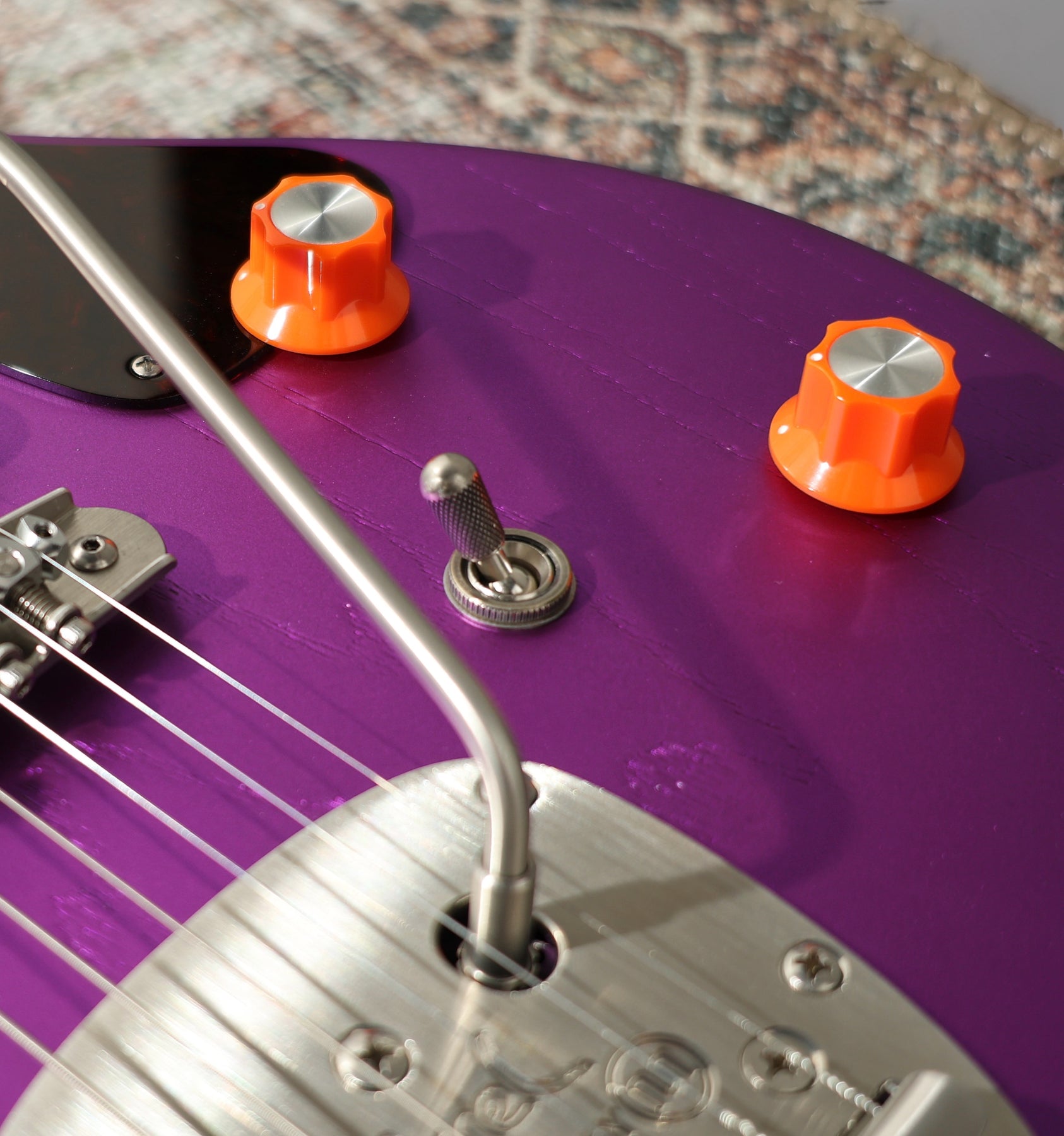

Electronics: Master volume, master tone, 3-way toggle for pickup selection
Knobs: 2 x synth knobs, orange
Pots: CTS, 500kOhm
Caps: Luxe BumbleBee 0.022 mfd
Wire: Belden, 22 AWG
Output: Switchcraft
Strap Buttons: Gotoh
Strings: Pyramid New Rock STD / 10-46

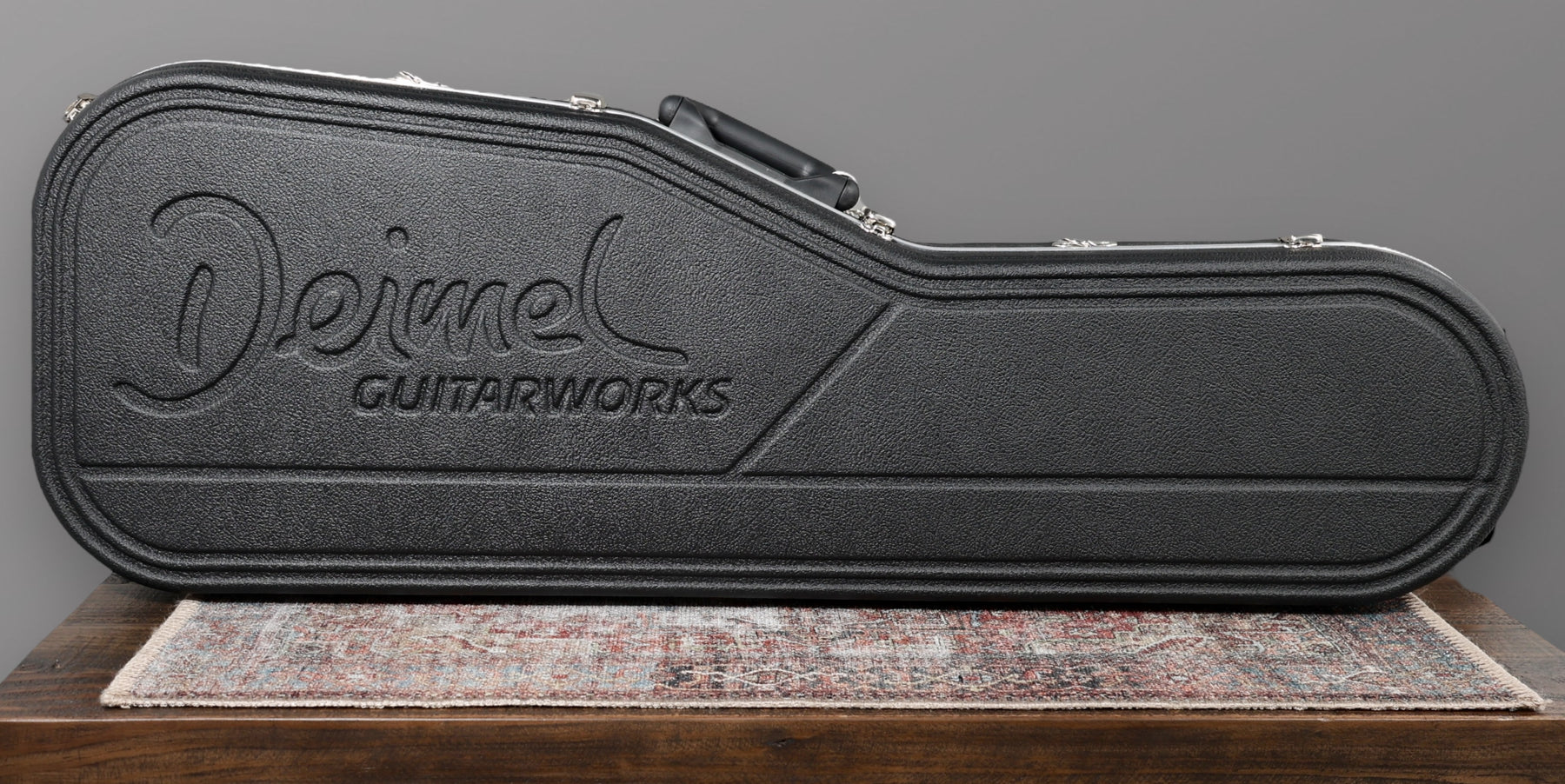

Case: Hiscox molded HSC
Weight: 6lbs 6oz
