📐 Body & Dimensions
Body Width: 13.85 inches (Compact 14" small-body design inspired by vintage 3/4-scale archtops like the Gibson ES-140).
Body Depth: Available in two distinct depth variations:
-
Thinline (SM-TBC / Standard Thin): 44 mm (1.73 inches).
Construction: Fully Hollow Body.
Bracing: Spruce parallel bracing.
Top Wood: 5-Ply Spruce (Standard models) or 5-Ply Curly Hard Maple

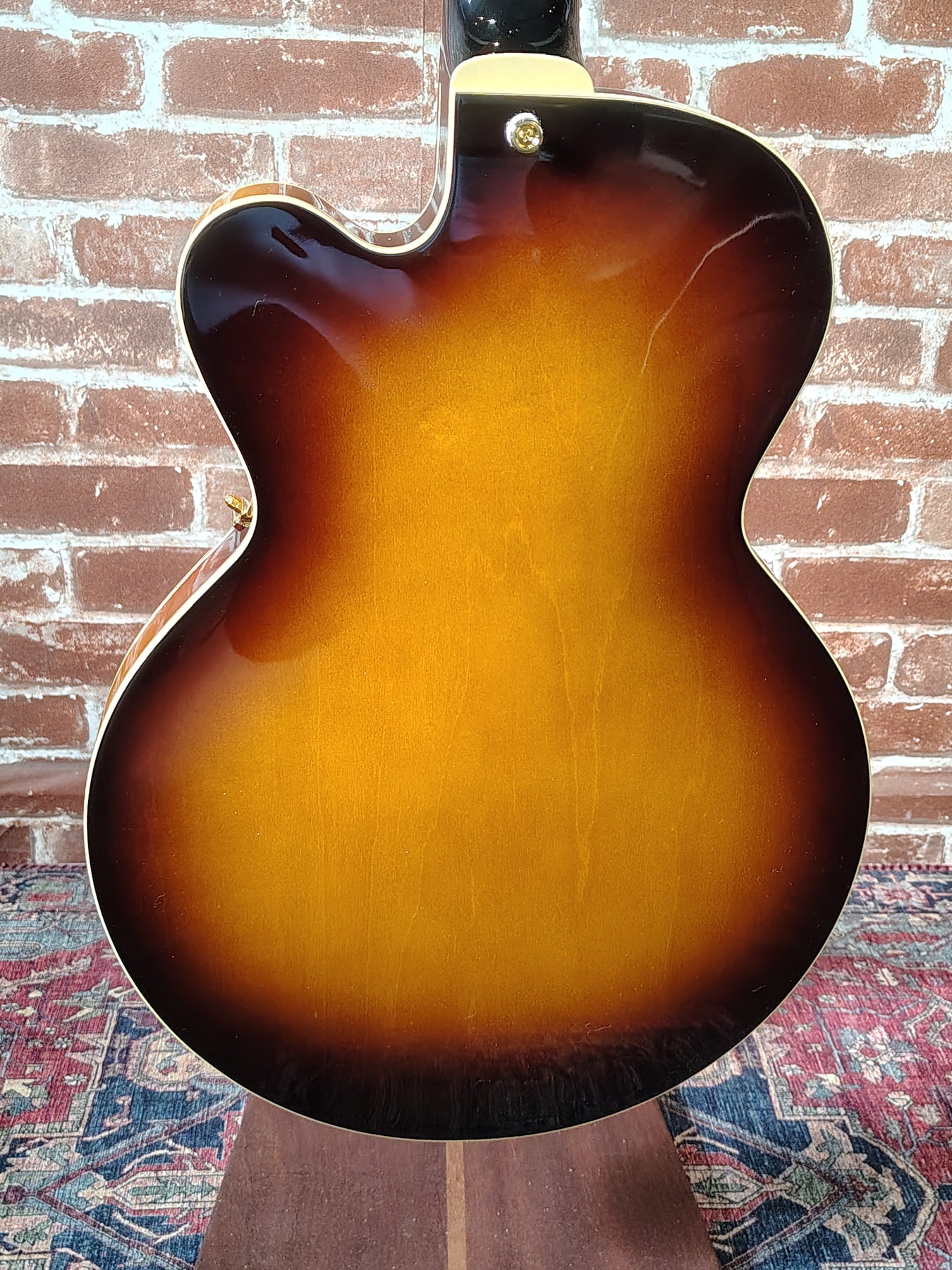

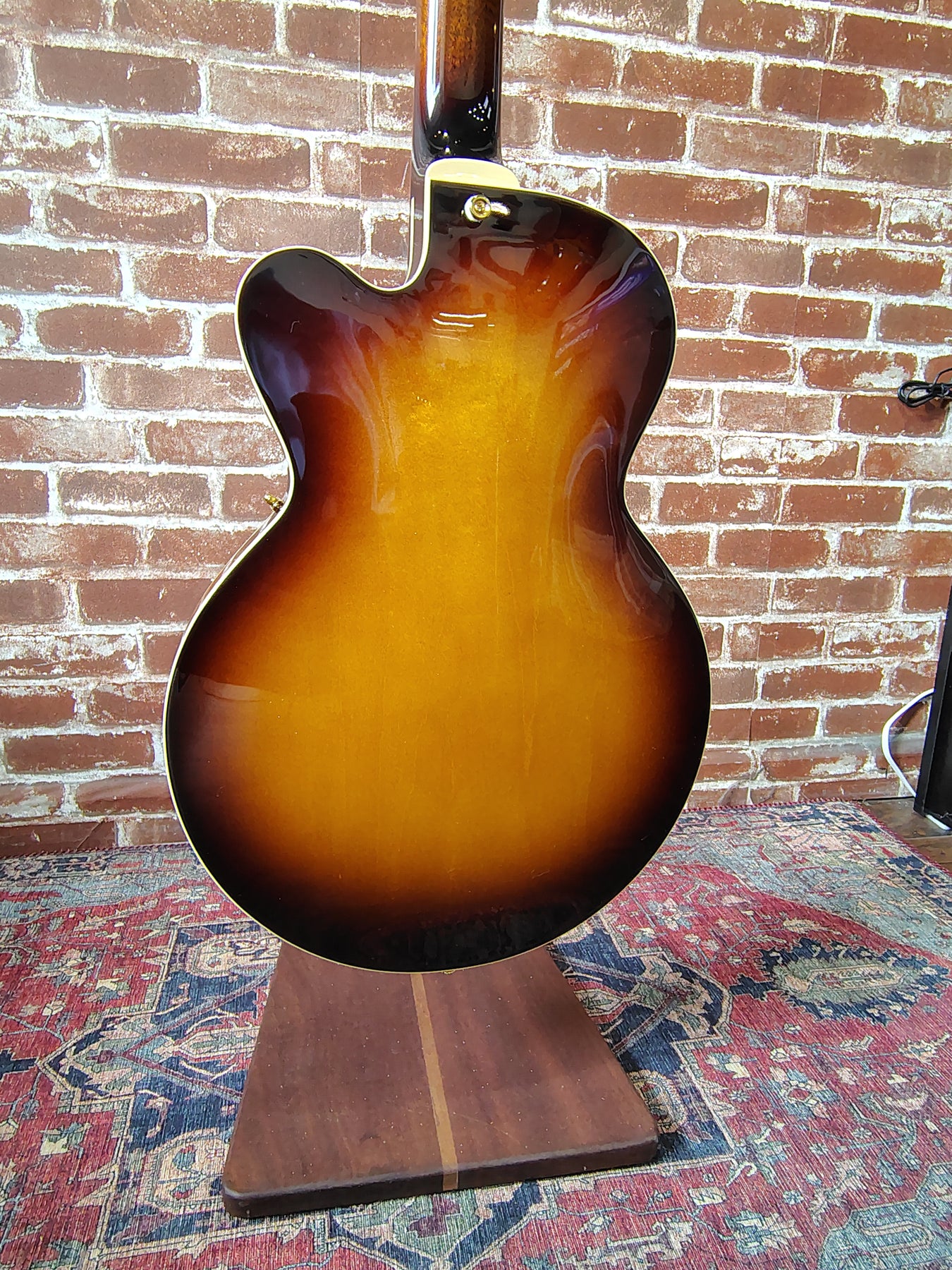

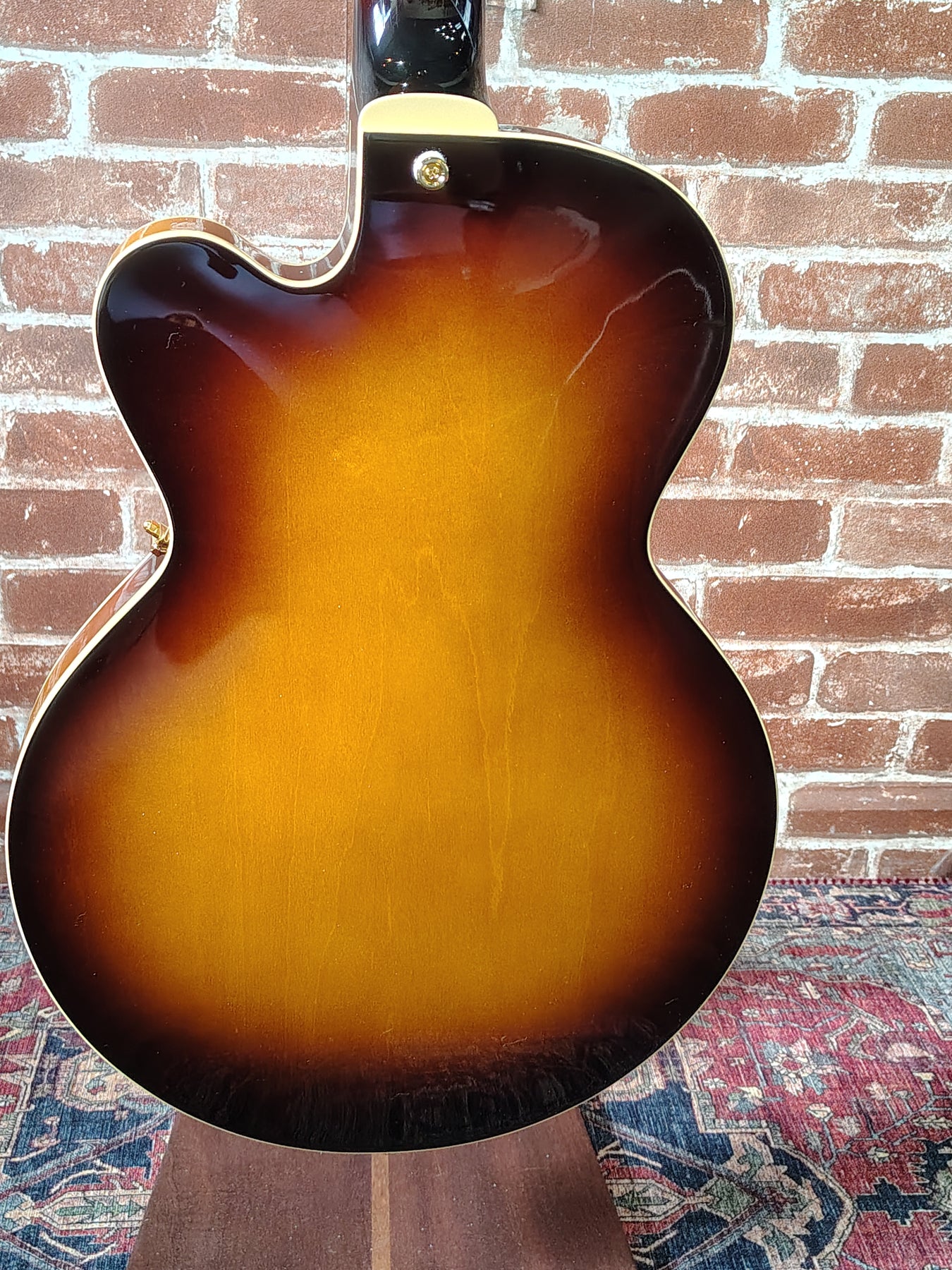

Back & Sides: 5-Ply Maple Back & 3-Ply Maple Side (or matching Curly Maple / African Mahogany depending on the build).
Neck: African Mahogany.
Fingerboard: Indian Rosewood (12" radius).
Nut Width: 43 mm (1.7 inches) with a bone nut.
Scale Length: 636 mm (25 inches).
Bridge & Tailpiece: Tune-O-Matic gold or nickel saddle on a floating Rosewood base paired with a traditional Trapeze Tailpiece.

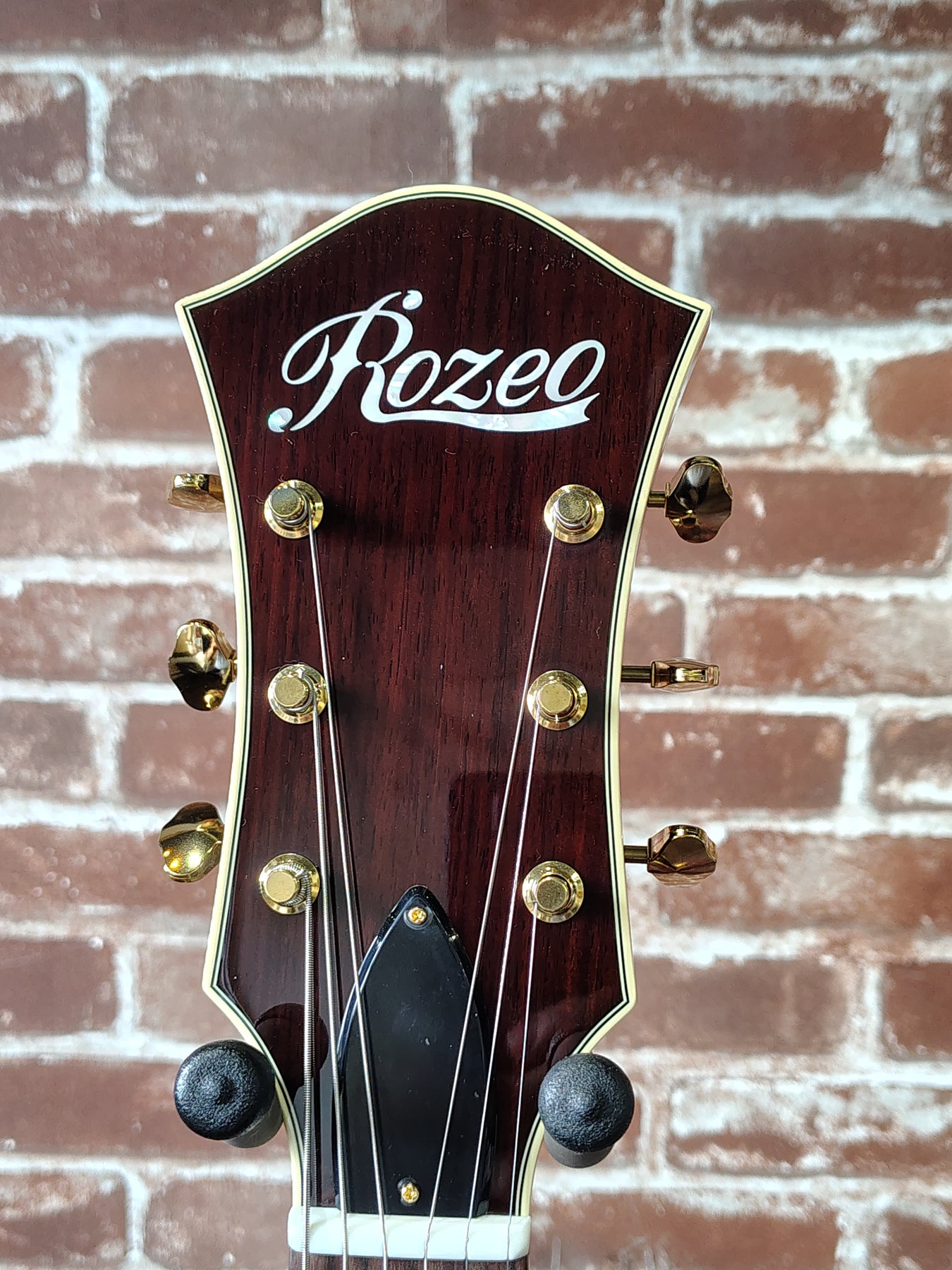

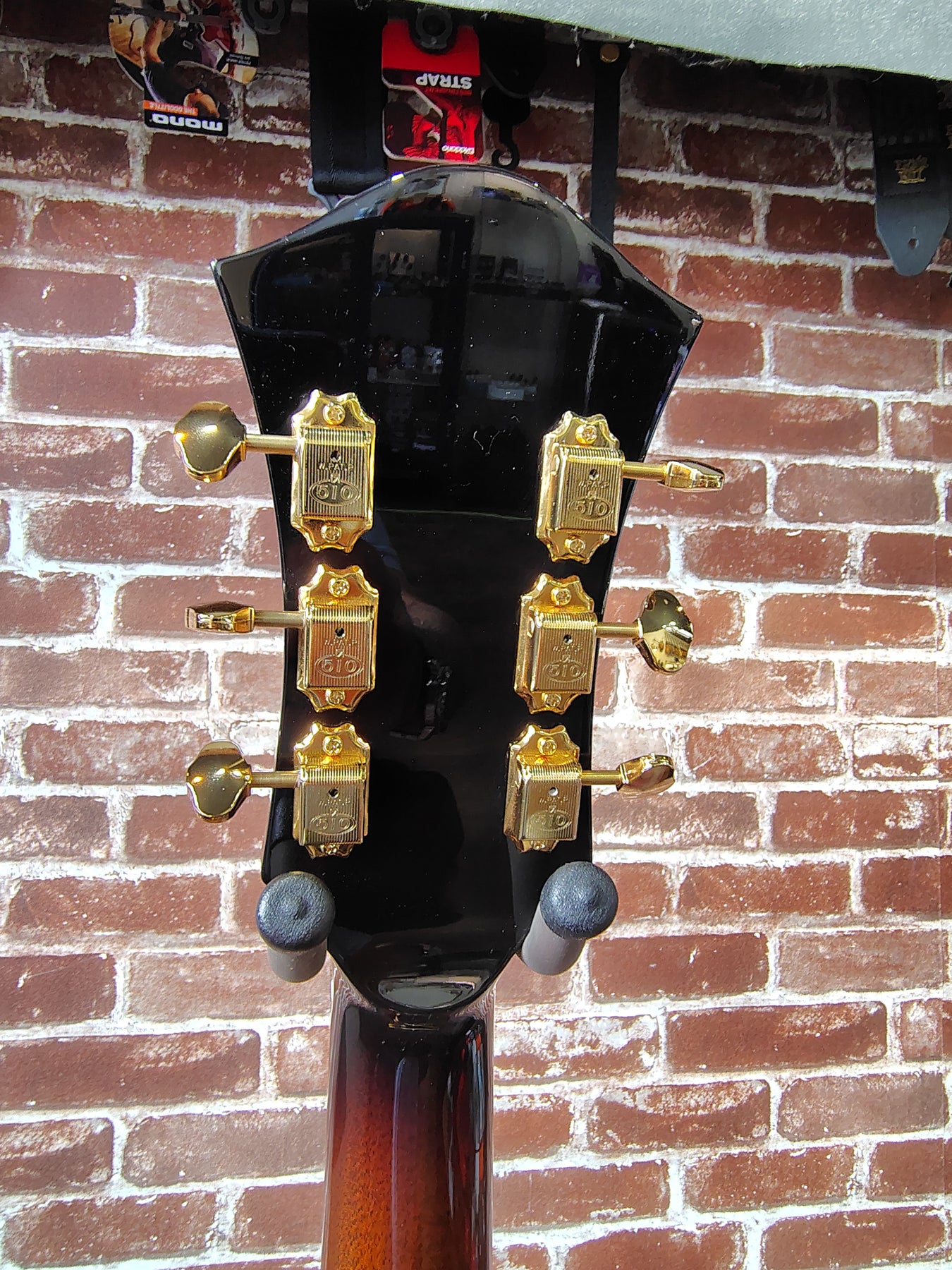

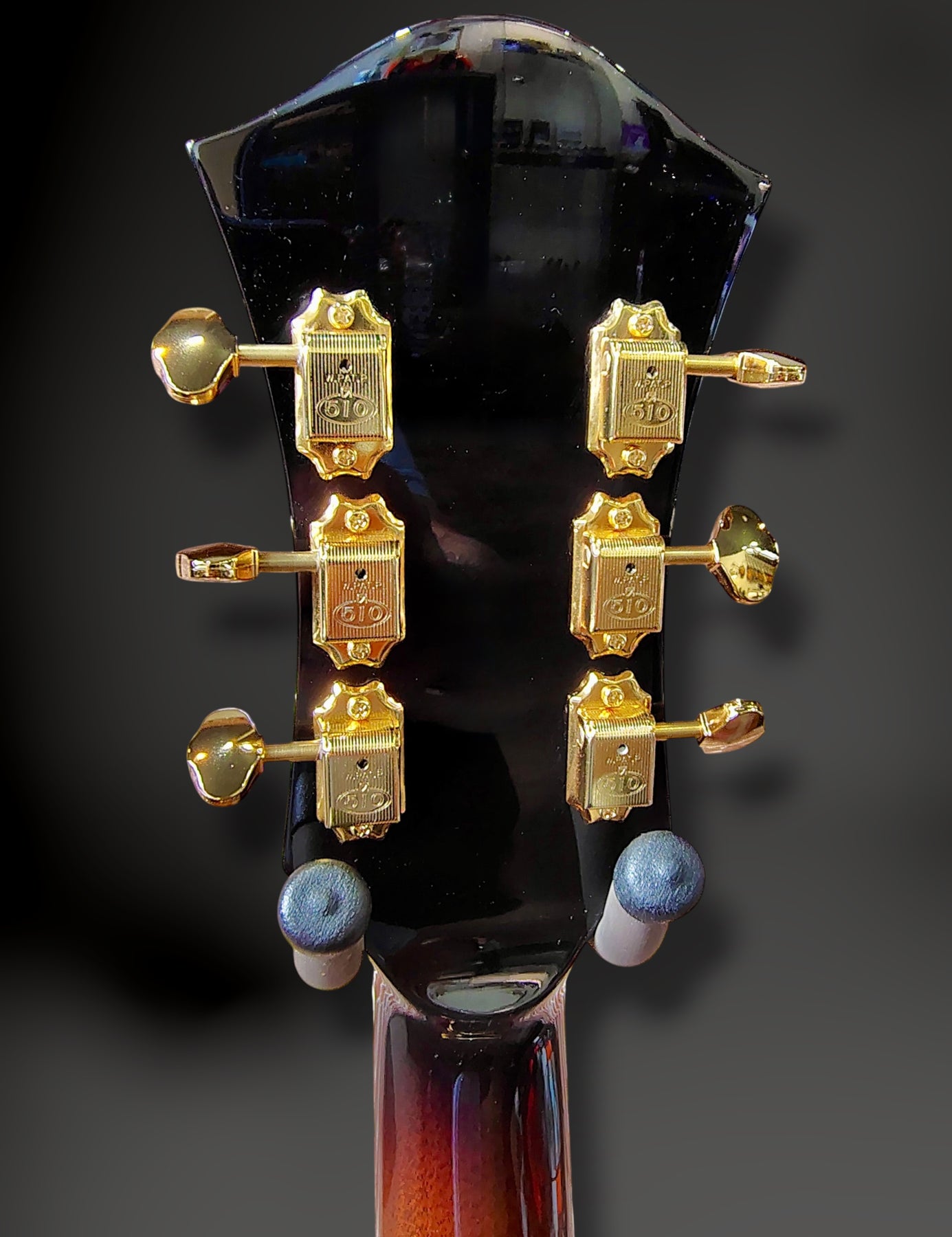

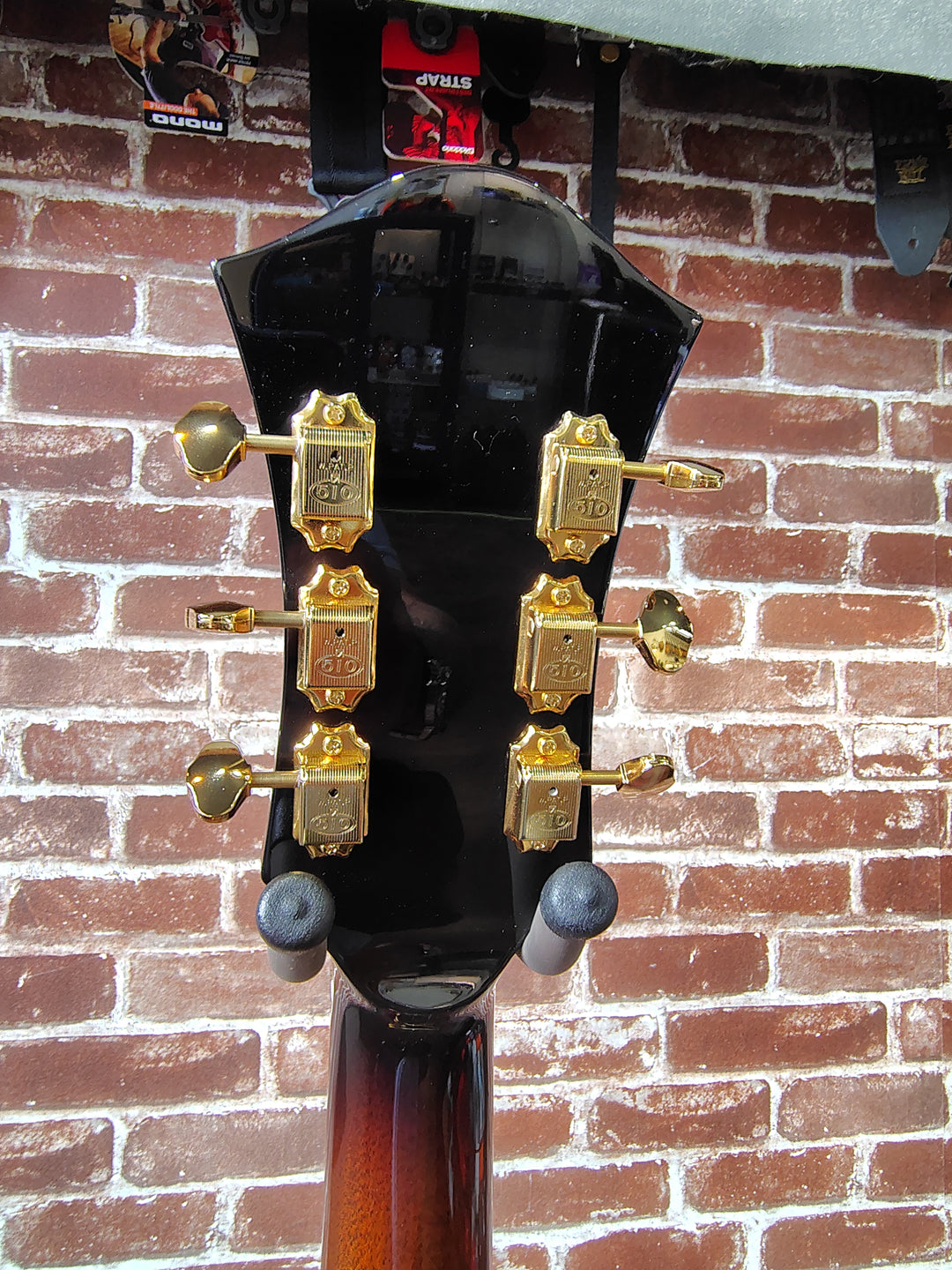

Tuners: High-end Gotoh SD510 or Gotoh 510 series.
Weight 4.6LB
⚡ Electronics Configurations
The Ladybug series utilizes passive electronics with a master volume and master tone layout, usually deploying one of three electronics packages:

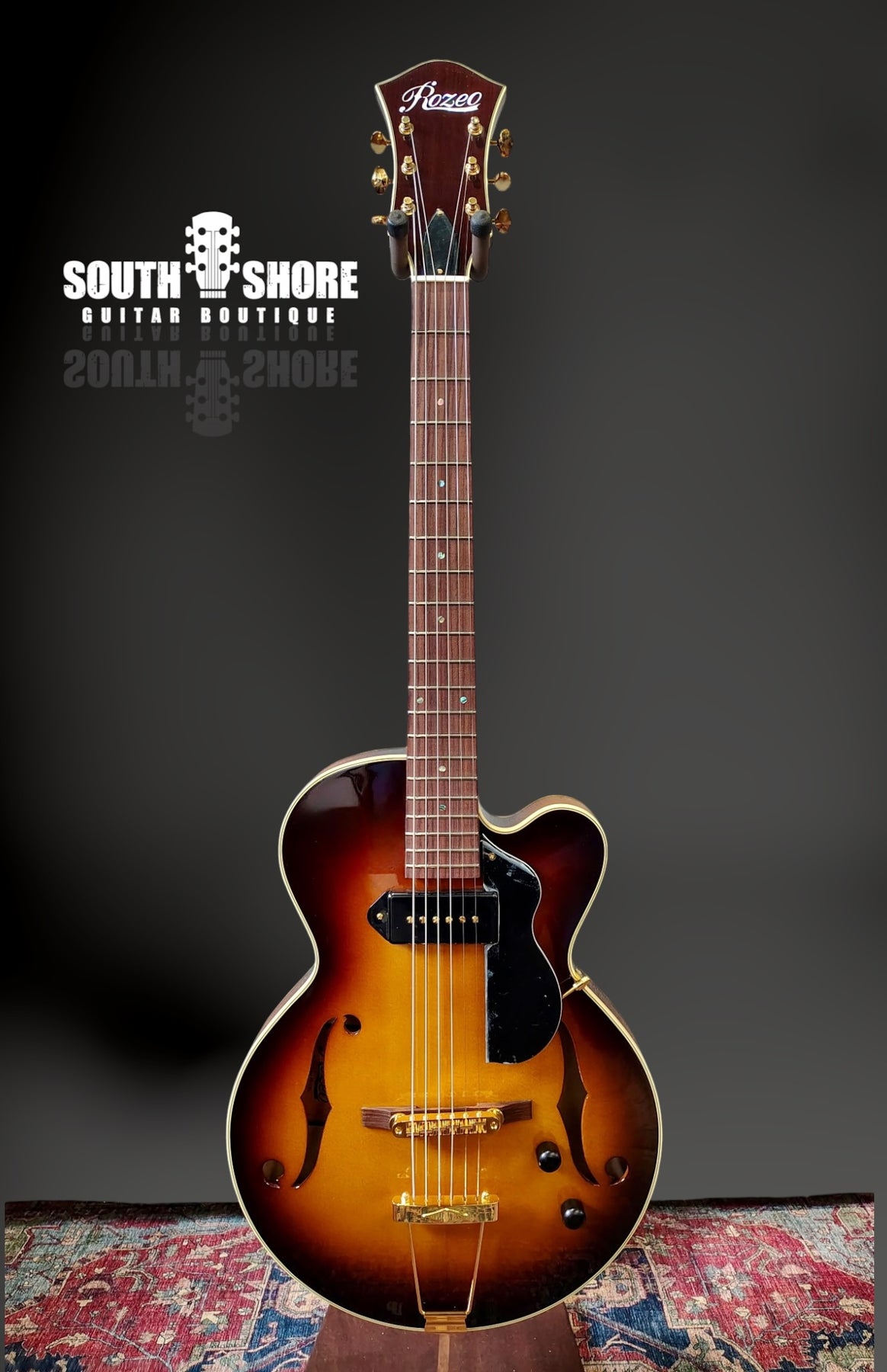

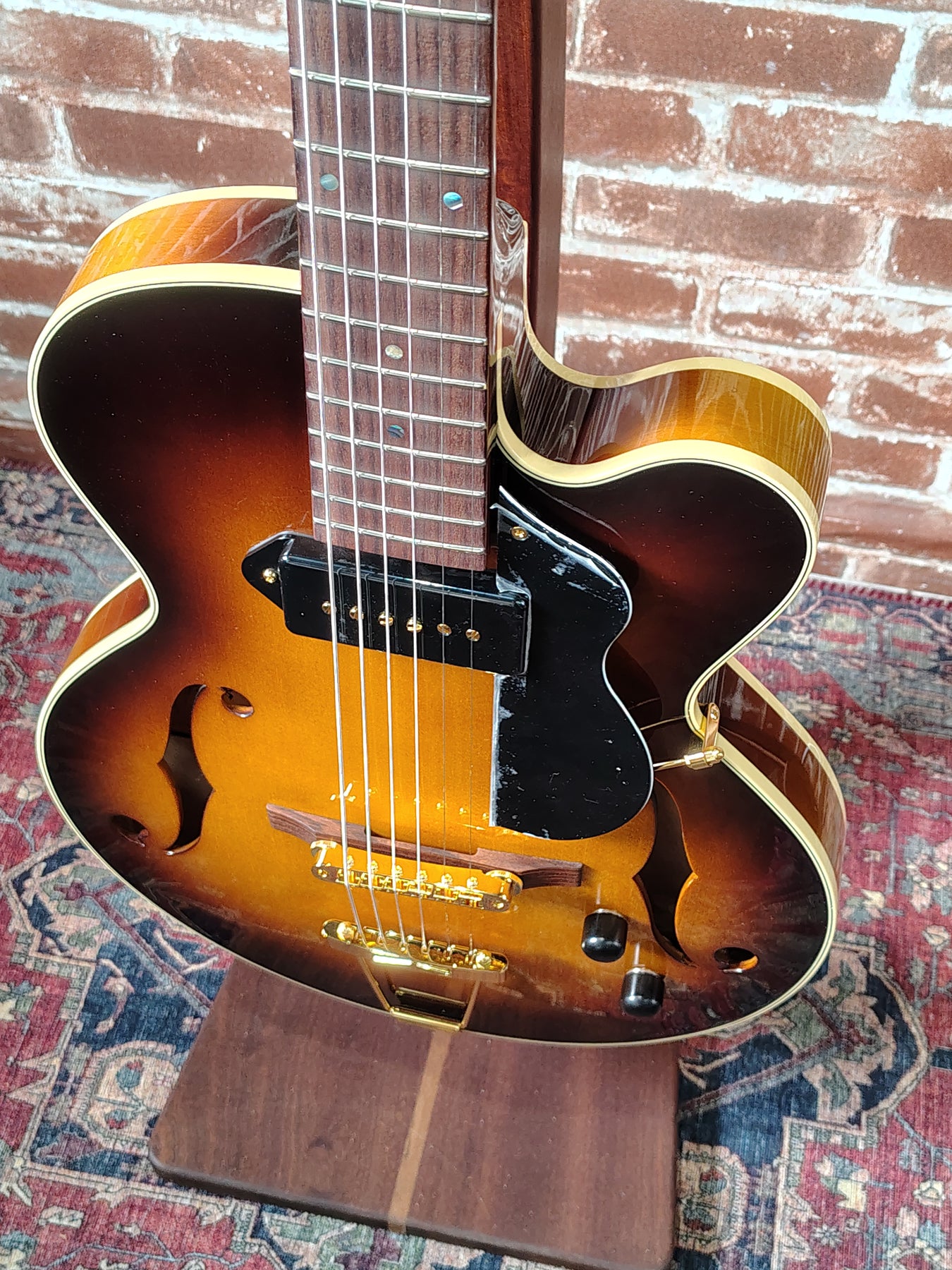

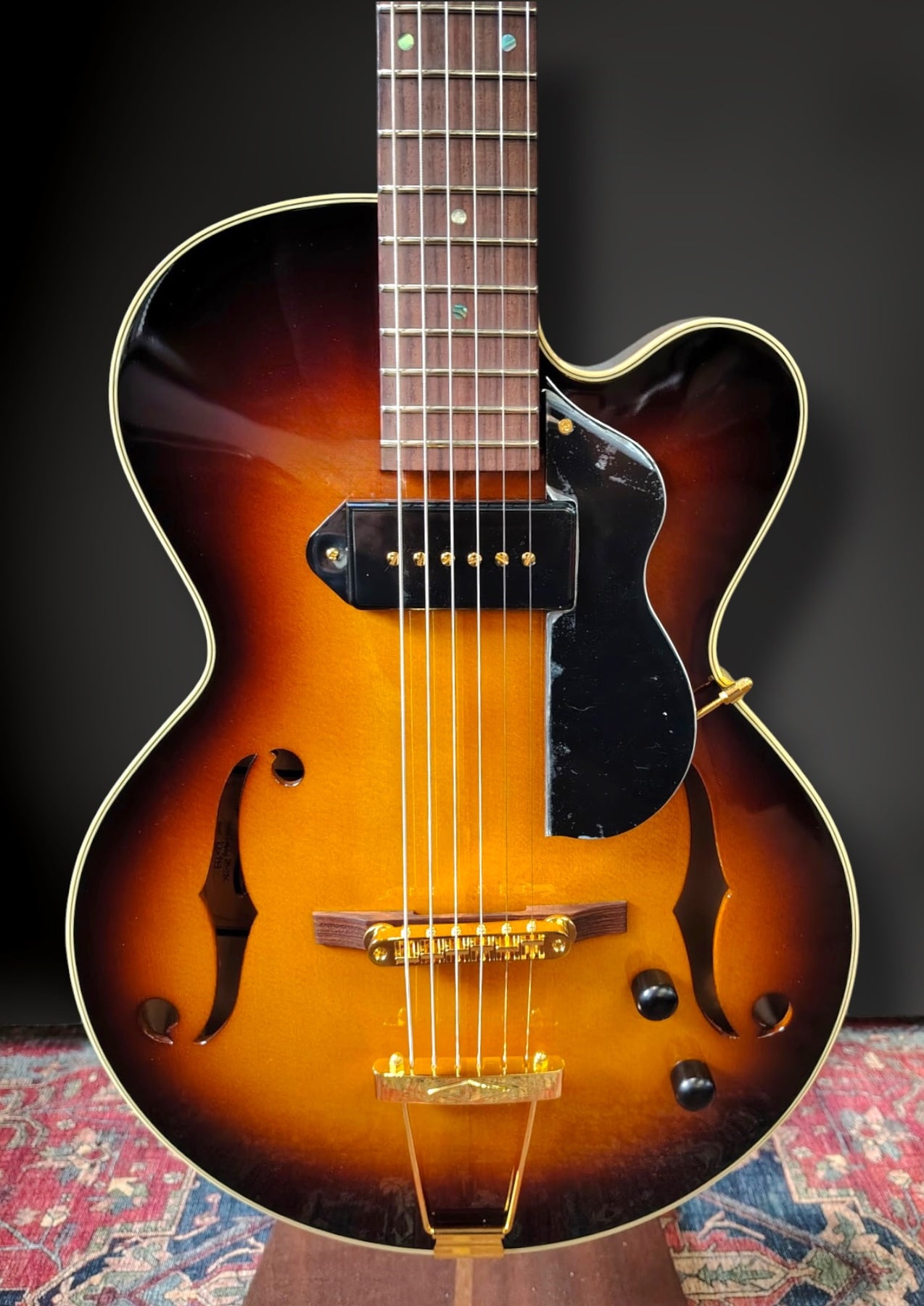

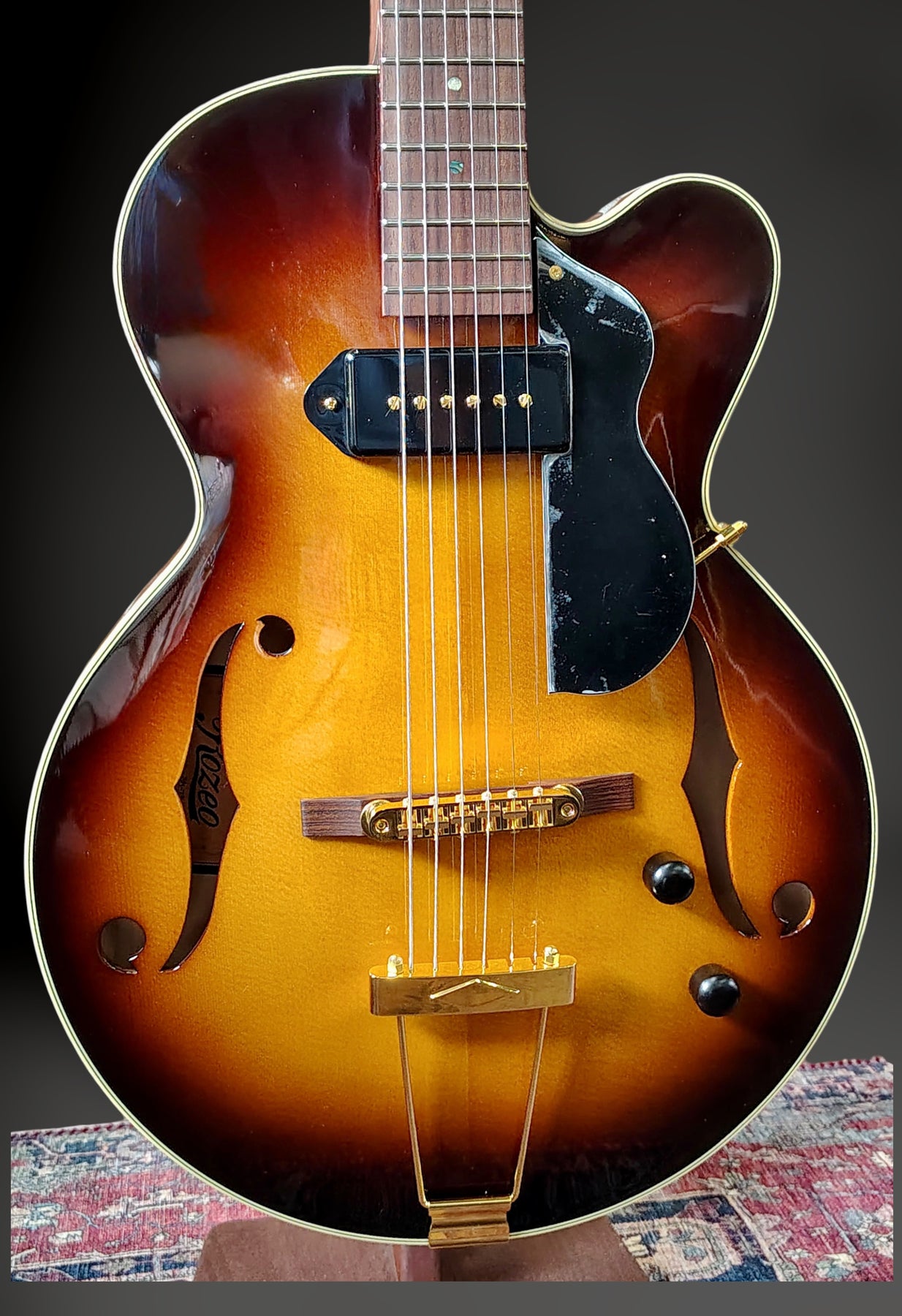

Single P-90: One original dog-ear P-90 pickup at the neck.
